Digital coating thickness gauge SAUTER TB

€325.00 Tax excluded

€325.00 - €455.00

Condition

New

Reference

TB 2000-0.1F

SAUTER TB ► Your reliable worktool for every day: light, easy, precise

Read the full description

Click here to view product combination list.

DigitalCoatingThicknessGauge CoatingThicknessGauge ThicknessGauge Coating Thickness ExternalSensor TB DigitalGauge TB1000-0.1F TB1000-0.1N TB1000-0.1FN TB2000-0.1F

Obtain technical data

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

TB 2000-0.1F See specifications

Characteristics

Measuring range [Max] µm:

100 µm | 1000 µm

Readout [d] µm:

0,1 µm | 1 µm

Test objet:

Coatings on steel and iron

Smallest sample surface, convex (radius) mm:

1.5 mm

Smallest sample surface,concave (radius) mm:

25 mm

Smallest sample surface, flat (radius) mm:

6 mm

Minimal base thickness:

300 µm

Option Factory calibration certificate:

€325.00 HT

Price HT

Stock

Shipping time

Action

7

Available from stock

48 - 72h

Model

Characteristics

TB 1000-0.1FN See specifications

Characteristics

Measuring range [Max] µm:

100 µm | 1000 µm

Readout [d] µm:

0,1 µm | 1 µm

Test objet:

Combination instrument: F, N

Smallest sample surface, convex (radius) mm:

1.5 mm

Smallest sample surface,concave (radius) mm:

25 mm

Smallest sample surface, flat (radius) mm:

6 mm

Minimal base thickness:

300 µm

Option Factory calibration certificate:

€455.00 HT

Price HT

Stock

Shipping time

Action

14

Available from stock

48 - 72h

Model

Characteristics

TB 2000-0.1F

Characteristics

Measuring range [Max] µm:

100 µm | 2000 µm

Readout [d] µm:

0,1 µm | 1 µm

Test objet:

Non-magnetic coatings on iron, steel

Smallest sample surface, convex (radius) mm:

3 mm

Smallest sample surface,concave (radius) mm:

50 mm

Smallest sample surface, flat (radius) mm:

6 mm

Minimal base thickness:

300 µm

Option Factory calibration certificate:

€325.00 HT

Price HT

Stock

Shipping time

Action

7

Available from stock

48 - 72h

Description

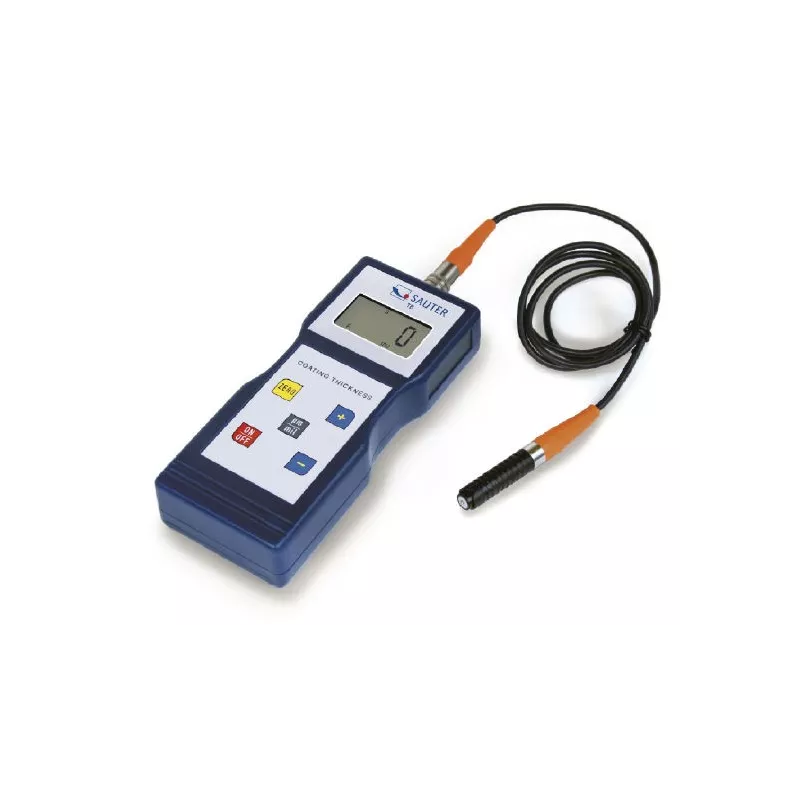

External sensor for difficult-to-access measurements
Base plate and calibration foils included

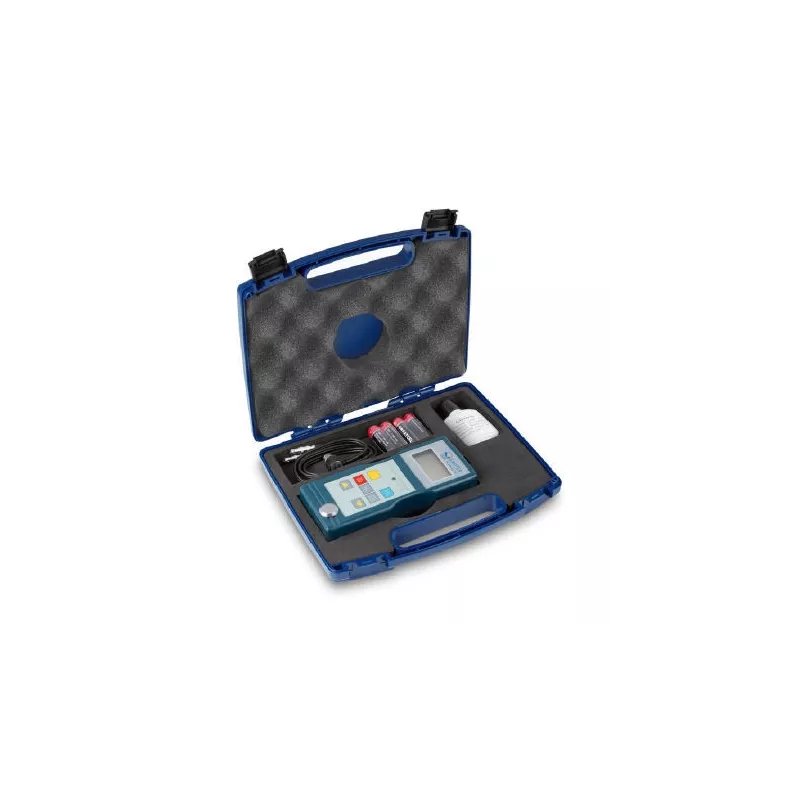

Delivered in a hard carrying case
Offset-Accur: This function allows you to adjust the instrument precisely on the locally measured range by a two-point calibration. This results in a superior accuracy of approx. 1 % of the measured value
Selectable measuring units: µm, inch (mil)
Auto-Power-Off
SAUTER TB 2000-0.1F.: Specifically designed for the automobile industry, Precision standard 5 % of measured value

Downloads

Brochure SAUTER TB (FR)

Download (219.61KB)

Mode d'emploi SAUTER TB (FR)

Download (265.6KB)

Brochure SAUTER TB (EN)

Download (210.71KB)

Usage manual SAUTER TB (EN)

Download (259.73KB)

Einzelprospekt SAUTER TB (GE)

Download (219.39KB)

Betriebsanleitung SAUTER TB (GE)

Download (265.42KB)

Folleto SAUTER TB (ES)

Download (213.79KB)

Instrucciones SAUTER TB (ES)

Download (264.5KB)

Specific references

EAN13: 4045761140004
