Model
Characteristics
Price HT
Stock
Shipping time
Model
Characteristics
TN GOLD 80
Characteristics
Test frequency (MHz):
7 MHz
Readout [d] mm:
0.01 mm

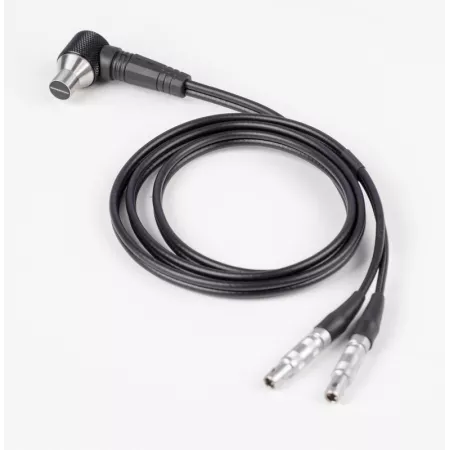

Sonde Ø (mm):
Ø 6 mm
Sound velocity (m/sec):
1000 - 9999 m/sec
Measuring range Plus-Echo (mm):
0,75 – 80 mm
Option Factory calibration certificate:
€770.00 HT
Price HT
Stock
Shipping time
Action
4
Available from stock
48 - 72h
Description
-
You can use the TN-GOLD to determine whether gold bars and coins are genuine or whether they contain a core of a different material - The instrument measures the thickness of gold bars and gold coins using ultrasound
-
Process: Ultrasound waves are directed onto the test object using a sensor. The waves penetrate the test object, are then reflected from a surface opposite the object and then picked up again by the sensor. The measurement determined by this process will be compared with the material thickness as measured by a traditional calliper gauge. On the basis of the measurement given, false cores (Figure: grey) such as for example, those made of tungsten, lead, etc. can be easily identified, as the ultrasound reacts differently, compared with pure gold - Selectable measuring units: mm, inch
-
Using the SAUTER SSG software (included), you can determine whether the test item is genuine or contains a false core – and you can be very confident of the result - Known additions in tested gold items – e. g. copper or silver - are compensated by the software
- In addition, the software determines the value of the gold item. The price of gold is polled on line continuously
- It is the only test process which measures right through the whole bar or the whole coin without interference and thereby guarantees the highest level of certainty
- Internal memory for up to 20 files (with up to 100 values per file)
- Base plate for adjustment included
- USB data interfaces as standard
-
Delivered in a hard carrying case
Specific references
- EAN13
- 4045761210660
