Ultrasonic thickness gauge SAUTER TN-US | Interbalances

Ultrasonic thickness gauge SAUTER TN-US

€630.00 Tax excluded

€630.00 - €800.00

Condition

New

Reference

TN 80-0.1US

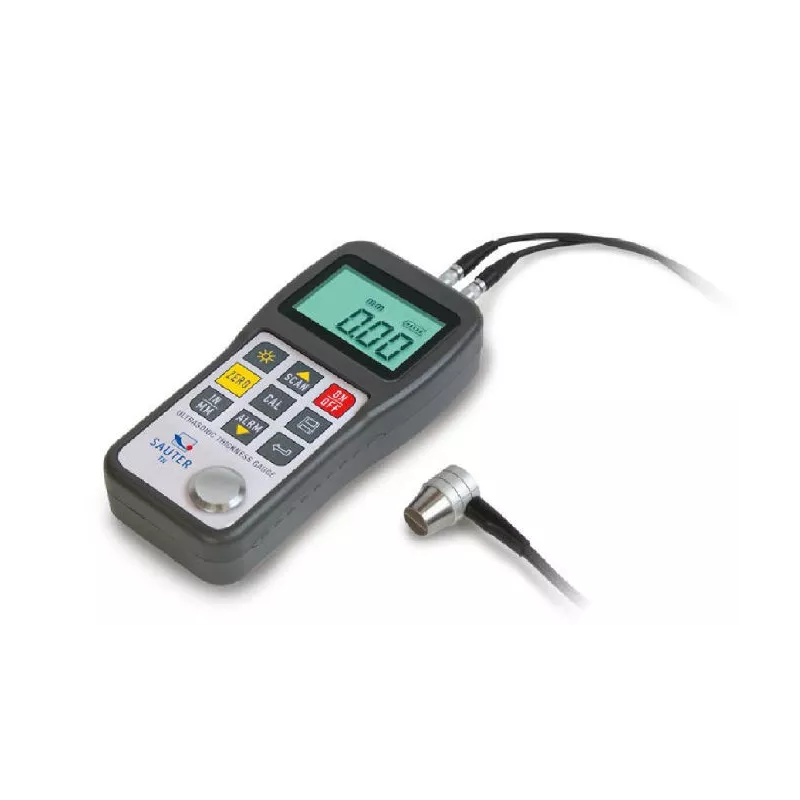

SAUTER TN-US ► Hand-hold thickness gauge

Read the full description

Click here to view product combination list.

ThicknessGauge UltrasonicThicknessGauge TN TN-US SAUTER SAUTERTN-US Hand-holdThicknessGauge TN80-0.1US TN230-0.1US TN300-0.1US TN80-0.01US TN230-0.01US

Obtain technical data

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

TN 80-0.1US See specifications

Characteristics

Test frequency (MHz):

7 MHz

Readout [d] mm:

0.1 mm

Sonde Ø (mm):

Ø 6 mm

Sound velocity (m/sec):

1000 - 9999 m/sec

Measuring range Plus-Echo (mm):

0,75 – 80 mm

Option Factory calibration certificate:

€630.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

TN 230-0.1US See specifications

Characteristics

Test frequency (MHz):

5 MHz

Readout [d] mm:

0.1 mm

Sonde Ø (mm):

Ø 10 mm

Sound velocity (m/sec):

1000 - 9999 m/sec

Measuring range Plus-Echo (mm):

1,2 – 230 mm

Option Factory calibration certificate:

€630.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

TN 300-0.1US See specifications

Characteristics

Test frequency (MHz):

2.5 MHz

Readout [d] mm:

0.1 mm

Sonde Ø (mm):

Ø 14 mm

Sound velocity (m/sec):

1000 - 9999 m/sec

Measuring range Plus-Echo (mm):

3 – 300 mm

Option Factory calibration certificate:

€740.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

TN 80-0.01US See specifications

Characteristics

Test frequency (MHz):

7 MHz

Readout [d] mm:

0.01 mm

Sonde Ø (mm):

Ø 6 mm

Sound velocity (m/sec):

1000 - 9999 m/sec

Measuring range Plus-Echo (mm):

0,75 – 80 mm

Option Factory calibration certificate:

€700.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

TN 230-0.01US See specifications

Characteristics

Test frequency (MHz):

5 MHz

Readout [d] mm:

0.01 mm

Sonde Ø (mm):

Ø 10 mm

Sound velocity (m/sec):

1000 - 9999 m/sec

Measuring range Plus-Echo (mm):

1,2 – 230 mm

Option Factory calibration certificate:

€700.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

TN 300-0.01US See specifications

Characteristics

Test frequency (MHz):

2.5 MHz

Readout [d] mm:

0.01 mm

Sonde Ø (mm):

Ø 14 mm

Sound velocity (m/sec):

1000 - 9999 m/sec

Measuring range Plus-Echo (mm):

3 – 300 mm

Option Factory calibration certificate:

€800.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

External sensor
USB data interfaces as standard (only for models with readout [d] = 0,01 mm)
Scan mode (10 measurements per sec.) or single point measuring mode possible
Internal memory for up to 20 files (with up to 100 values per file)
Selectable measuring units: mm, inch

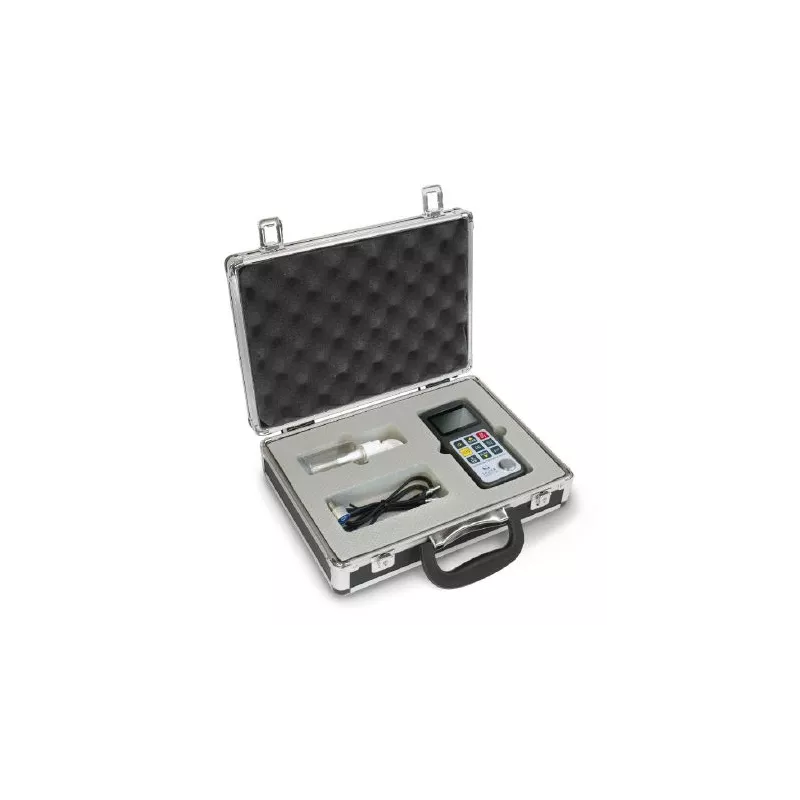

Delivered in a hard carrying case

Downloads

Brochure SAUTER TN-US (FR)

Download (210.55KB)

Mode d'emploi SAUTER TN-US (FR)

Download (595.37KB)

Brochure SAUTER TN-US (EN)

Download (201.31KB)

Usage manual SAUTER TN-US (EN)

Download (577.22KB)

Einzelprospekt SAUTER TN-US (GE)

Download (210.19KB)

Betriebsan. SAUTER TN-US (GE)

Download (587.96KB)

Folleto SAUTER TN-US (ES)

Download (204.58KB)

Instrucciones SAUTER TN-US (ES)

Download (586.32KB)

Specific references

EAN13: 4045761139831

External sensor, 2,5 MHz, Ø 14 mm - ATU-US01

€235.00

External sensor, 7 MHz, Ø 6 mm, for thin...

€150.00

External sensor, 5 MHz, Ø 10 mm, for thin...

€150.00

External sensor, 5 MHz, Ø 10 mm,...

€150.00

External sensor, 5 MHz, Ø 12 mm for hot...

€540.00

Ultrasound contact gel, approx. 60 ml -...

€70.00

Data transfer software, interface cable...

€120.00

Paper roll (1 piece) for thermal printer...

€17.00

Transport case - MPS-A09

€160.00

Data transfer software SAUTER AFI-2.0

€190.00
