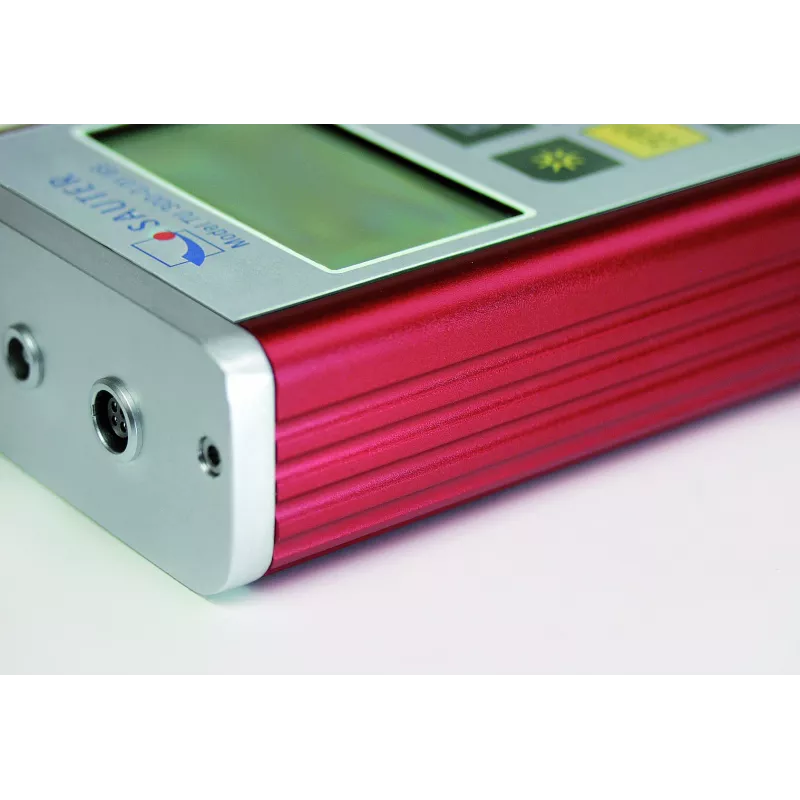

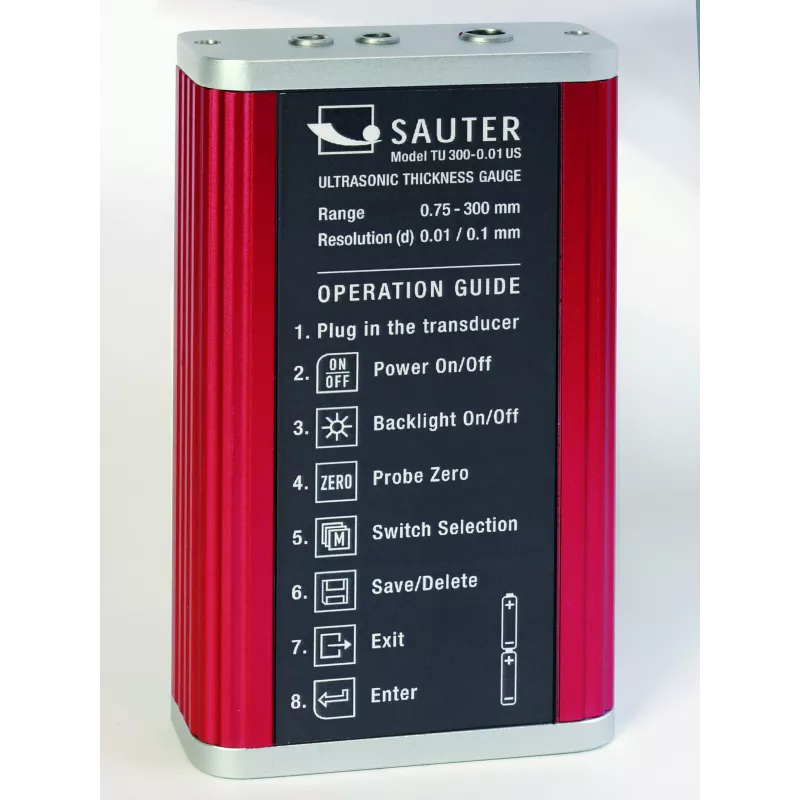

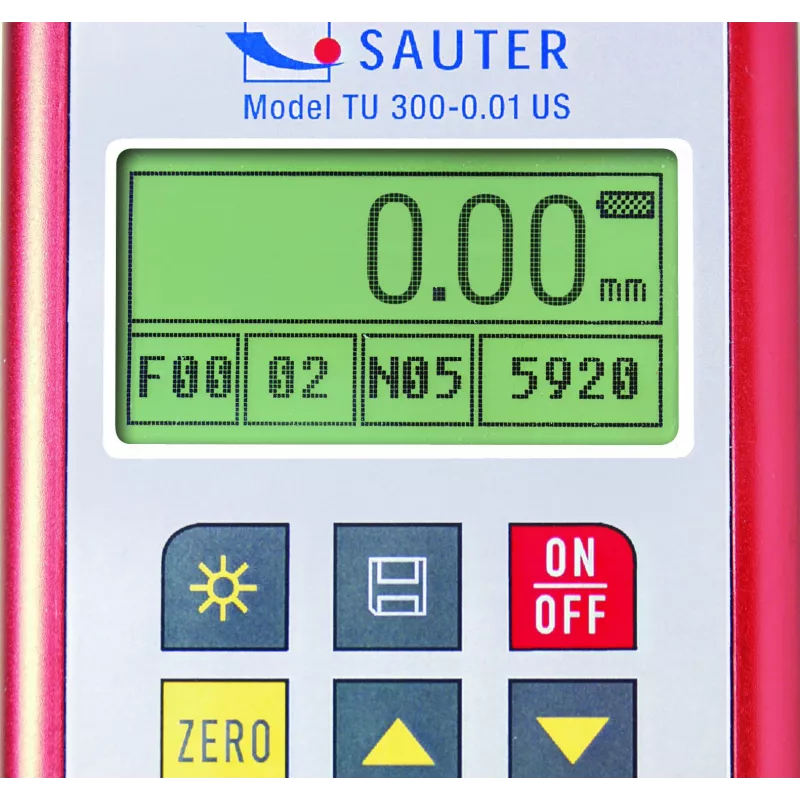

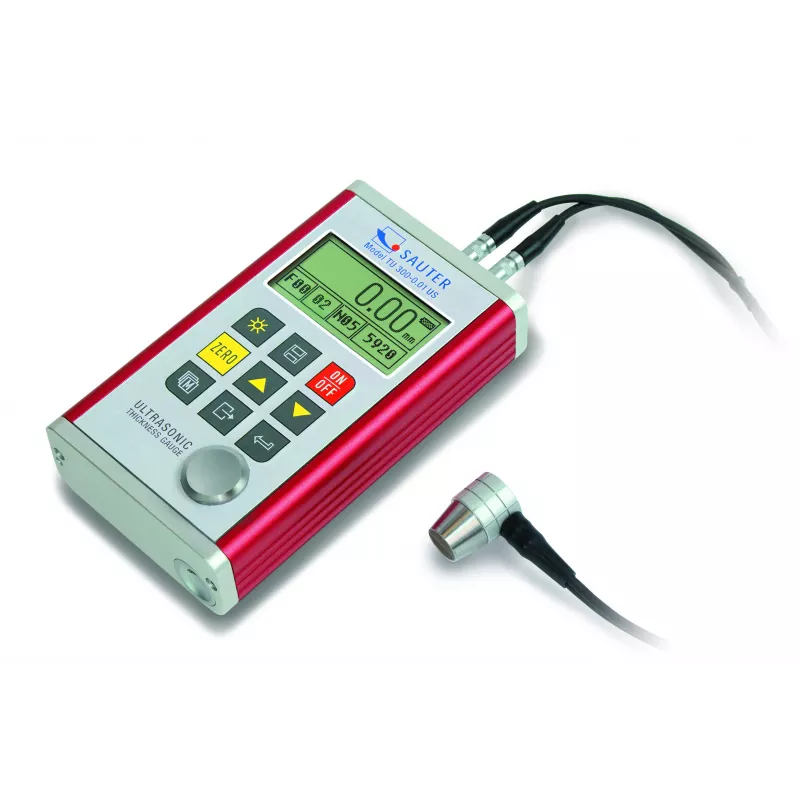

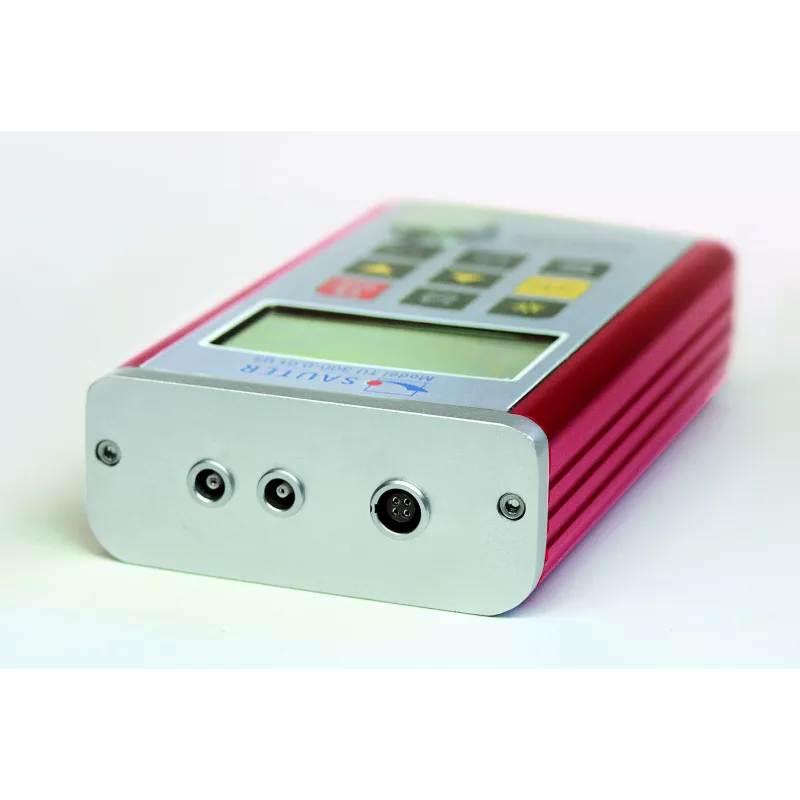

Ultrasonic thickness gauge SAUTER TU-US
€1,310.00 Tax excluded
€1,310.00 - €1,410.00
Model
Characteristics
Price HT
Stock
Shipping time
Model
Characteristics
TU 80-0.01US See specifications
Characteristics
Test frequency (MHz):
7 MHz
Readout [d] mm:
0.01 mm
Sonde Ø (mm):
Ø 6 mm
Sound velocity (m/sec):
1000 - 9999 m/sec
Measuring range Plus-Echo (mm):
0,75 – 80 mm
Option Factory calibration certificate:
€1,310.00 HT
Price HT
Stock
Shipping time
Action
26
Available from stock
48 - 72h
Model
Characteristics
TU 230-0.01US See specifications
Characteristics
Test frequency (MHz):
5 MHz
Readout [d] mm:
0.01 mm
Sonde Ø (mm):
Ø 10 mm
Sound velocity (m/sec):
1000 - 9999 m/sec
Measuring range Plus-Echo (mm):
1,2 – 230 mm
Option Factory calibration certificate:
€1,310.00 HT
Price HT
Stock
Shipping time
Action
20
Available from stock
48 - 72h
Model
Characteristics
TU 300-0.01US See specifications
Characteristics
Test frequency (MHz):
2.5 MHz
Readout [d] mm:
0.01 mm
Sonde Ø (mm):
Ø 14 mm
Sound velocity (m/sec):
1000 - 9999 m/sec
Measuring range Plus-Echo (mm):
3 – 300 mm
Option Factory calibration certificate:
€1,410.00 HT
Price HT
Stock
Shipping time
Action
22
Available from stock
48 - 72h
Description
- External sensor for difficult-to-access measurements
- Base plate for adjustment included
-
Data interface RS-232 -

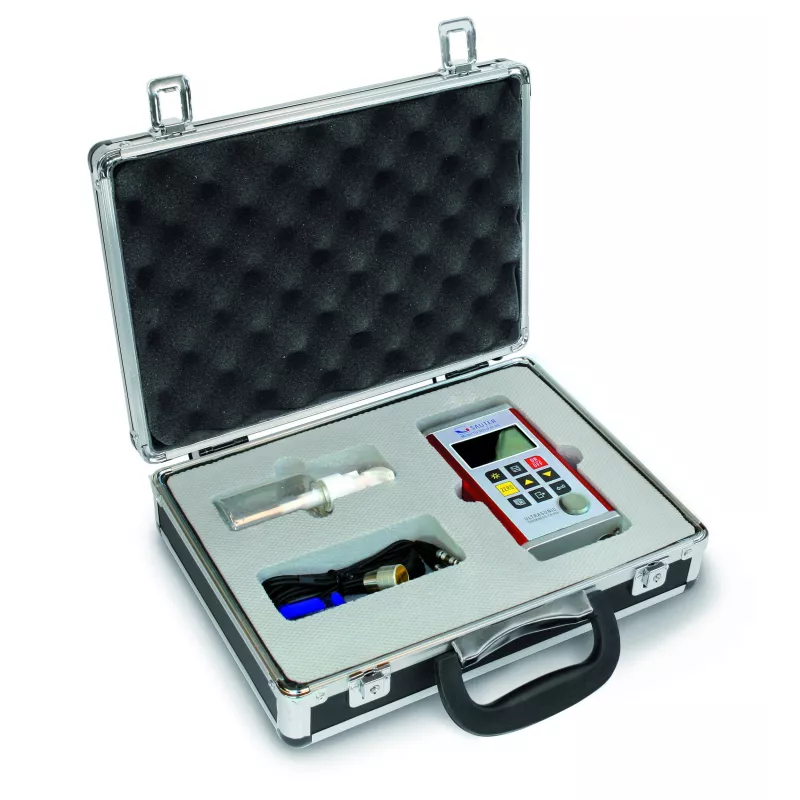

Delivered in a hard carrying case - Scan mode (10 measurements per sec.) or single point measuring mode possible
- Internal memory for up to 20 files (with up to 100 values per file)
- Function to set limits, programming of Max./Min., in pull and push direction, with output of audible and optical signal. Ideal mode for efficient and accurate testing of standard parts
- Selectable measuring units: mm, inch
- Robust metal housing
Brochure SAUTER TU-US (FR)
Download (244.56KB)Mode d'emploi SAUTER TU-US (FR)
Download (594.06KB)Brochure SAUTER TU-US (EN)
Download (235.43KB)Usage manual SAUTER TU-US (EN)
Download (583.41KB)Einzelprospekt SAUTER TU-US (GE)
Download (244.25KB)Betriebsan. SAUTER TU-US (GE)
Download (597.03KB)Folleto SAUTER TU-US (ES)
Download (238.72KB)Instrucciones SAUTER TU-US (ES)
Download (594.5KB)Specific references
- EAN13
- 4045761139824
