6 wire “S” measuring cell CS-Q1 | Interbalances

6 wire “S” measuring cell CS-Q1

€215.00 Tax excluded

€215.00 - €370.00

Condition

New

Reference

CS 50-3Q1

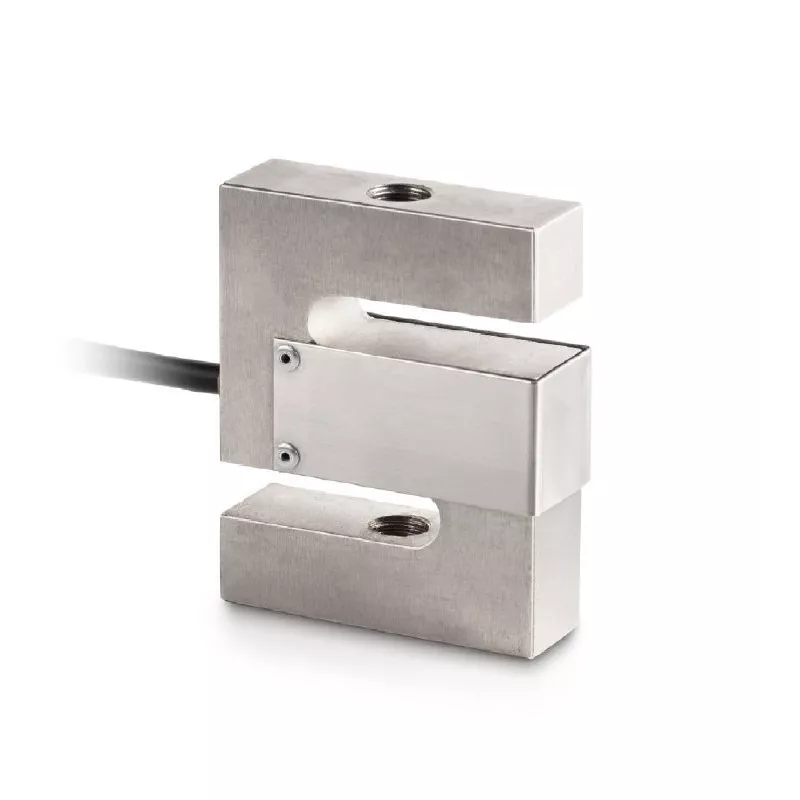

SAUTER CS-Q1 ► 6 wire “S” measuring cells for force and mass measurement

Read the full description

Click here to view product combination list.

IP67Protection TensileForceMeasurement ForceMeasurement CompressiveForceMeasurement SAUTER MassMeasurement IP67 MeasuringCell ProtectionAgainstDust ProtectionAgainstWaterSplashe 6WireMeasuringCell SAUTERCS-QI

Obtain technical data

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

CS 50-3Q1

Characteristics

Total dimensions (W×D×H):

80 mm x 62,1 mm x 19 mm

Nominal load (kg):

50 kg

Type of protection:

IP67

€215.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 100-3Q1

Characteristics

Total dimensions (W×D×H):

80 mm x 62,1 mm x 19 mm

Nominal load (kg):

100 kg

Type of protection:

IP67

€215.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 150-3Q1

Characteristics

Total dimensions (W×D×H):

80 mm x 62,1 mm x 19 mm

Nominal load (kg):

150 kg

Type of protection:

IP67

€215.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 200-3Q1

Characteristics

Total dimensions (W×D×H):

80 mm x 62,1 mm x 19 mm

Nominal load (kg):

200 kg

Type of protection:

IP67

€215.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 300-3Q1

Characteristics

Total dimensions (W×D×H):

80 mm x 62,1 mm x 19 mm

Nominal load (kg):

300 kg

Type of protection:

IP67

€215.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 500-3Q1

Characteristics

Total dimensions (W×D×H):

80 mm x 62,1 mm x 19 mm

Nominal load (kg):

500 kg

Type of protection:

IP67

€215.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 750-3Q1

Characteristics

Total dimensions (W×D×H):

80 mm x 62,1 mm x 19 mm

Nominal load (kg):

750 kg

Type of protection:

IP67

€215.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 1000-3Q1

Characteristics

Total dimensions (W×D×H):

80 mm x 62,1 mm x 19 mm

Nominal load (kg):

1000 kg

Type of protection:

IP67

€215.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 1500-3Q1

Characteristics

Total dimensions (W×D×H):

90 mm x 70 mm x 32 mm

Nominal load (kg):

1500 kg

Type of protection:

IP67

€250.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 2000-3Q1

Characteristics

Total dimensions (W×D×H):

90 mm x 70 mm x 32 mm

Nominal load (kg):

2000 kg

Type of protection:

IP67

€250.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 3000-3Q1

Characteristics

Total dimensions (W×D×H):

120 mm x 100 mm x 45 mm

Nominal load (kg):

3000 kg

Type of protection:

IP67

€370.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 5000-3Q1

Characteristics

Total dimensions (W×D×H):

120 mm x 100 mm x 45 mm

Nominal load (kg):

5000 kg

Type of protection:

IP67

€370.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 6000-3Q1

Characteristics

Total dimensions (W×D×H):

120 mm x 100 mm x 45 mm

Nominal load (kg):

6000 kg

Type of protection:

IP67

€370.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

Accuracy class C3
Protection against dust and water splashes IP67 (in accordance with EN 60529, hermetically encapsulated

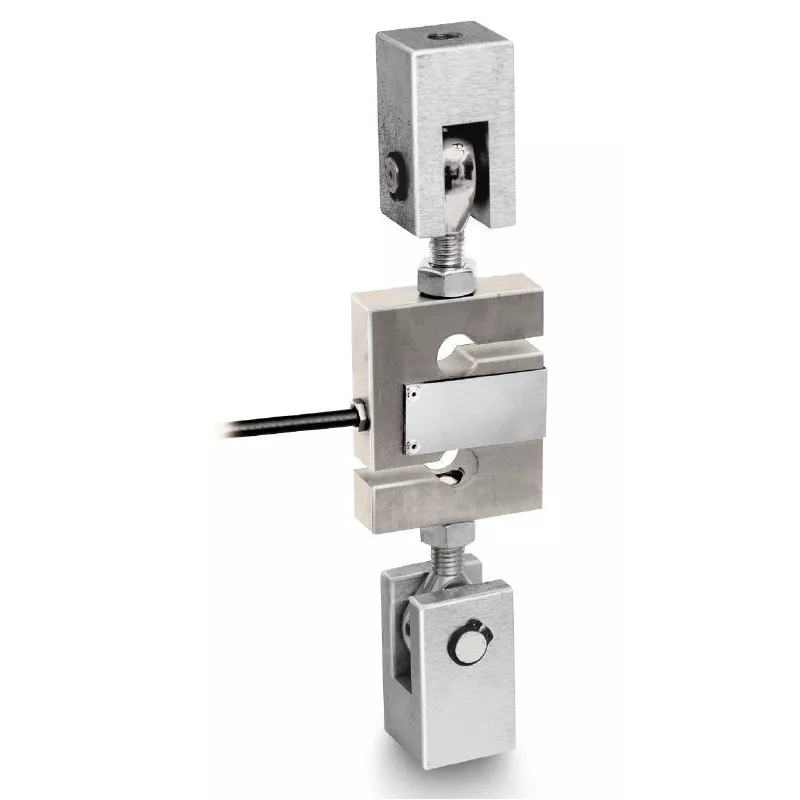

Scope of application: for tensile and compressive force measurement
Suitable for handing scales, weigh hoppers and other weighing devices as well as force measurement devices and test benches
6-wire connection
Nominal sensitivity: 2 mV/V
