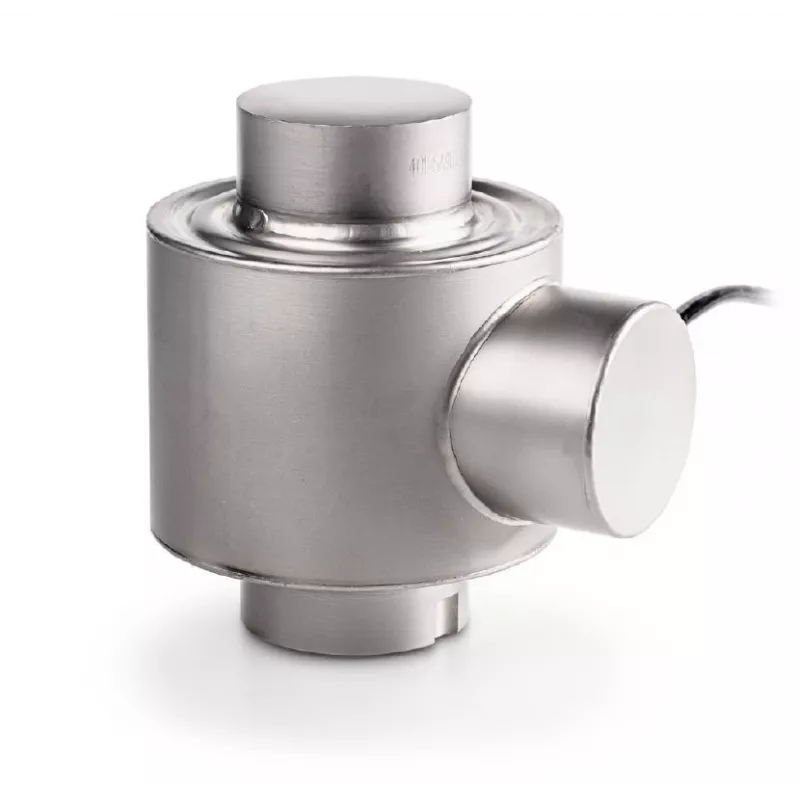

Load cell made of stainless steel CD-P1

€460.00 Tax excluded

Condition

New

Reference

CD 10-3P1

SAUTER CD-P1 ► Load cells made of stainless steel, protection against dust and water splashes IP68, hermetically encapsulated

Description complète et documents

Click here to view product combination list.

Obtain technical data

IP68Protection SAUTER LoadCell LoadCells IP68 CD10-3P1 CD20-3P1 CD40-3P1 CD50-3P1 ProtectionAgainstDust ProtectionIP68 SAUTERCD-P1

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

CD 10-3P1

Characteristics

Nominal load (kg):

10 kg

Type of protection:

IP68

€460.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CD 20-3P1

Characteristics

Nominal load (kg):

20 kg

Type of protection:

IP68

€460.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CD 40-3P1

Characteristics

Nominal load (kg):

40 kg

Type of protection:

IP68

€460.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

Accuracy class C3
protection against dust and water splashes IP68 (in accordance with EN 60529), hermetically encapsulated
stainless steel
Area of application: Measuring mass as well as compressive force
Suitable for vehicle scales, weigh hoppers, vehicle testing equipment, test benches
Note: EX version and accuracy class C4 on request
Nominal sensitivity: 2 mV/V
