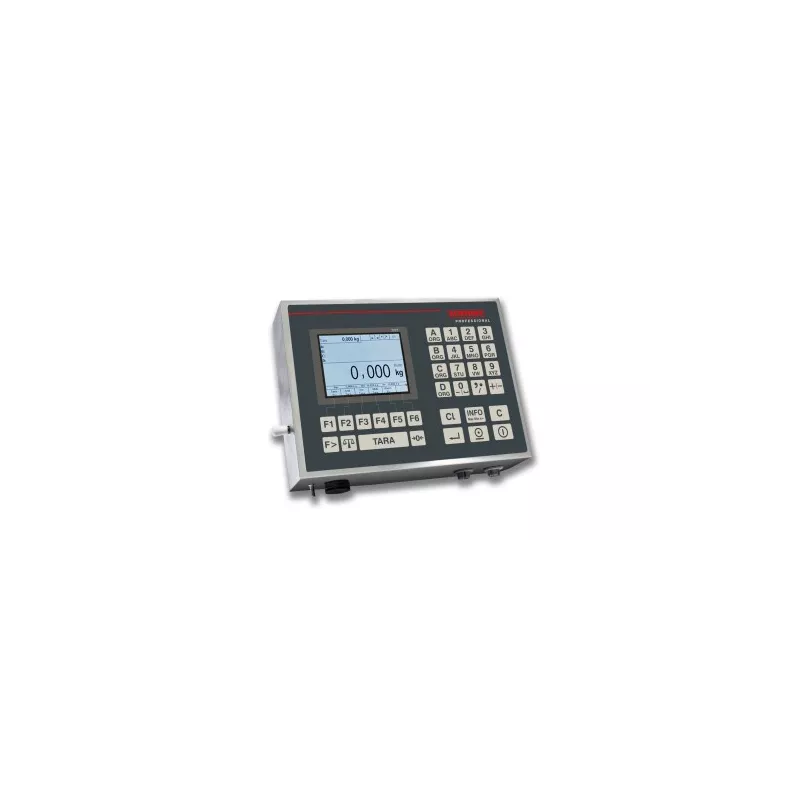

Terminal SOEHNLE 3025

The terminal 3025 is the ideal solution for applications in incoming and outgoing goods as well as in production, storage and shipping. The Terminal 3025 can also be used in the food, pharmaceutical, chemical, electrical, construction and metal industries.

Features

• Approvable, class III, up to 10.000 e
• Protection class IP 67
• 5 software applications Weighing and taring, totalising and order picking, counting, checking, dynamic switching
• 32 keys, alphanumeric data entry
• Fixed value memory for 999 fixed values per memory (option)
• 4 organization data memories, e.g. for article number, customer number, or shipping ticket number, 6 lines with 35 characters each
• Barcode management

Housing

• Compact housing made from 1.4301 stainless steel, protection class IP 67, suited for rough operating conditions
• Integrated power supply, 100 – 240 V, 50 60 Hz
• Pressure is compensated by gas-permeable membrane

Display & keyboard

• Large color display TFT 3.5″ (QVGA 320 x 240 pixels)
• Adjustable background color (green, white, light-blue, yellow, blue, magenta, and red), background lighting dimmable from 30 – 100 %
• Control function as control light
• Large weight display with 11 mm height
• Membrane keypad wit 32 large keys for reliable operation

Connectivity options

• Up to 2 analog weighing platforms can be connected
• Approvable resolution up to 10.000 e/3 x 3.000 e with corresponding load cells
• A digital reference scale can be connected via RS 232 interface

Interfaces

A total of up to 6 devices (digital reference scale, scanner, data logger, printer, etc.) can be connected to the 3025 terminal. The following interfaces are optionally available:

• 3 serial interfaces RS 232 / RS 422 / RS 485 (pluggable)
• 1 USB interface for PC keyboard, EDP, printer, data logger, keyboard wedge, etc.
• 1 Ethernet interface
• 1 Bluetooth interface (pluggable)
• 1 I/O card with 4 inputs and 6 outputs
