Digital force gauge SAUTER FH-M

€1,000.00 Tax excluded

€1,000.00 - €1,680.00

Condition

New

Reference

FH 1K

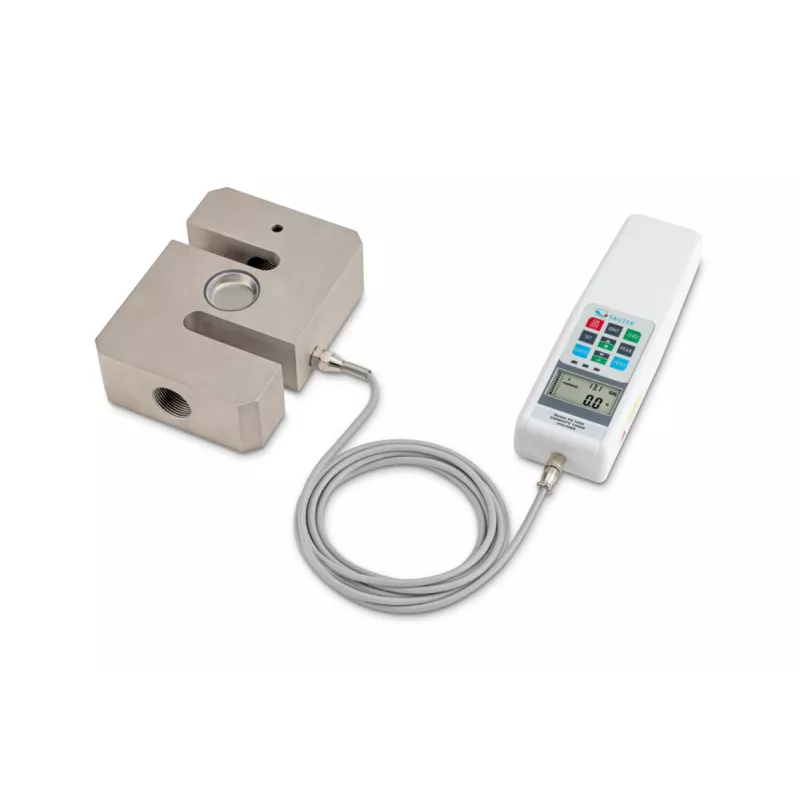

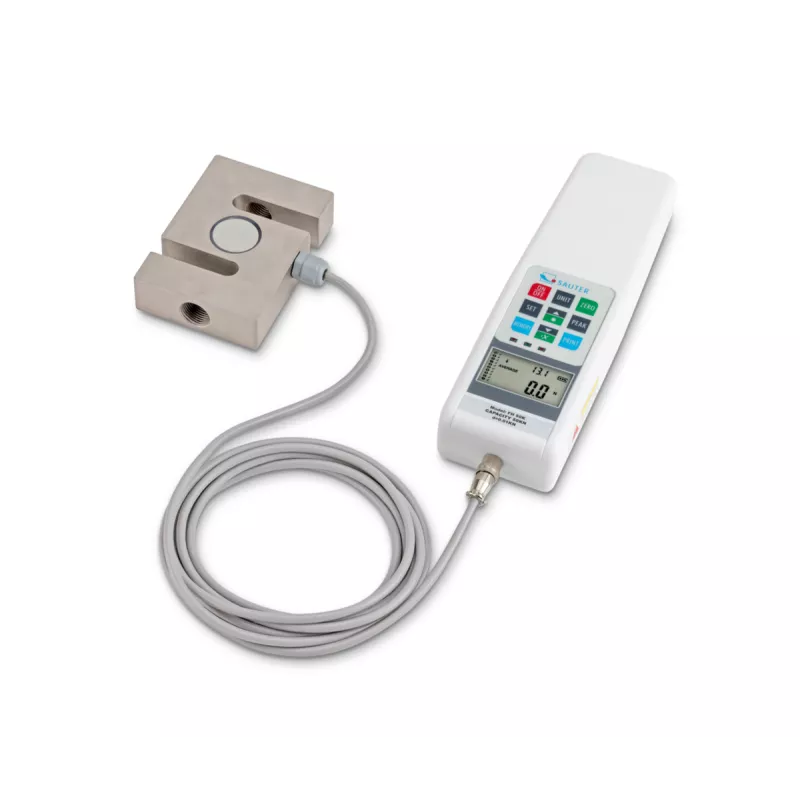

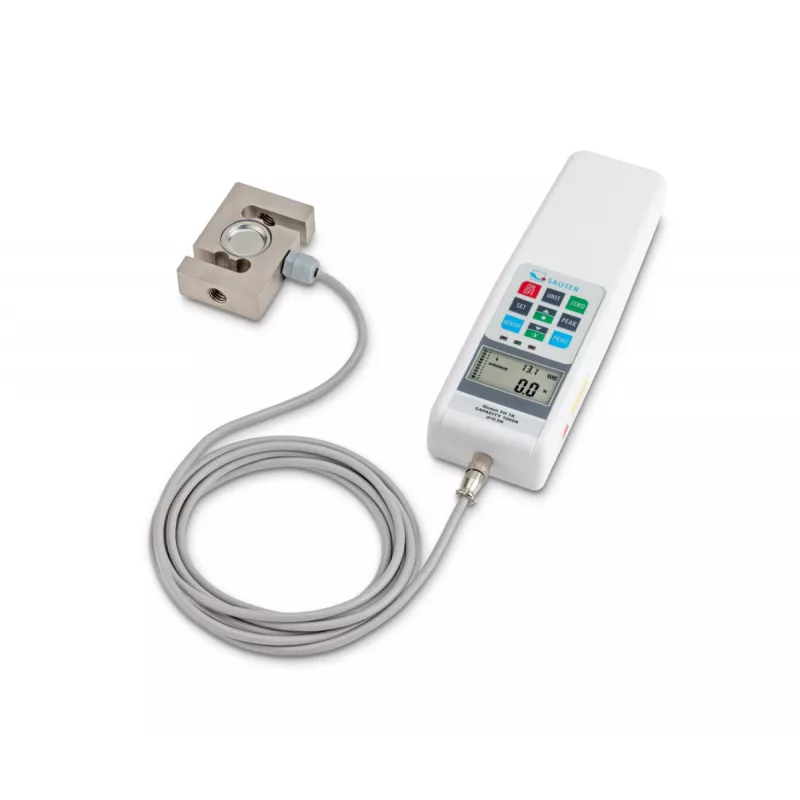

SAUTER FH-M ► Universal digital force-measuring devices for tensile and compressive force measurement with external measuring cell

Description complète et documents

Click here to view product combination list.

Obtain technical data

ForceGauge DigitalForceGauge FH ForceMeasuring Force FH-M 1000N 2000N 5000N 10000N 20000N 50000N

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

FH 1K See specifications

Characteristics

Measuring range [Max] N:

1000 N (1 kN)

Readout [d] N:

0.5 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€1,000.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

FH 2K See specifications

Characteristics

Measuring range [Max] N:

2000 N (2 kN)

Readout [d] N:

1 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€1,000.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

FH 5K See specifications

Characteristics

Measuring range [Max] N:

5000 N (5 kN)

Readout [d] N:

1 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€1,270.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

FH 10K See specifications

Characteristics

Measuring range [Max] N:

10000 N (10 kN)

Readout [d] N:

5 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€1,360.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

FH 20K See specifications

Characteristics

Measuring range [Max] N:

20000 N (20 kN)

Readout [d] N:

10 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€1,370.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

FH 50K See specifications

Characteristics

Measuring range [Max] N:

50000 N (50 kN)

Readout [d] N:

10 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€1,600.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

FH 100K See specifications

Characteristics

Measuring range [Max] N:

100000 N (100 kN)

Readout [d] N:

50 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€1,680.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

Turnable display with backlight
cable length: approx. 3 m

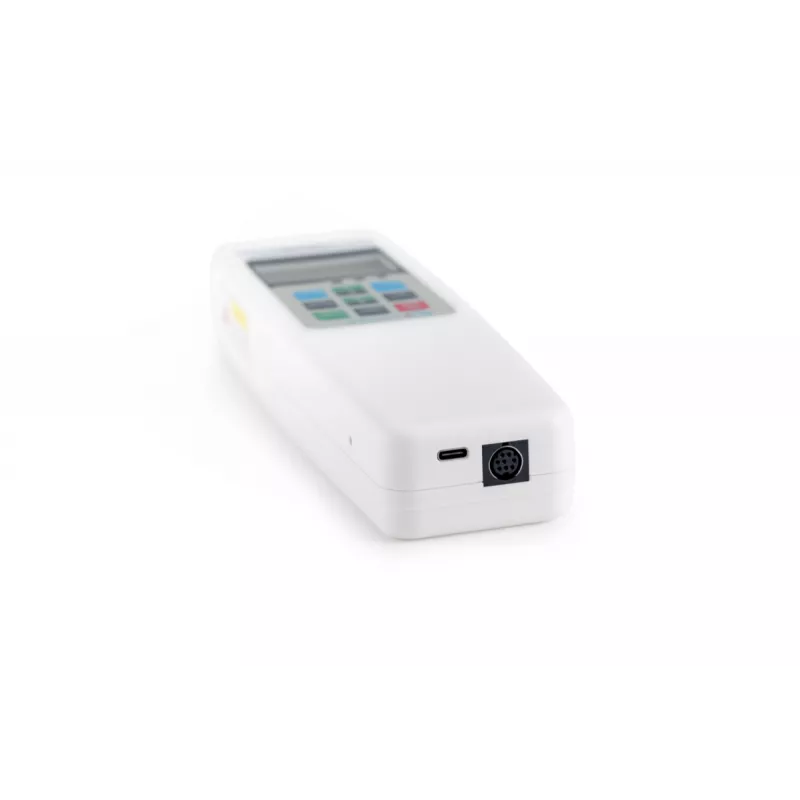

Data interface RS-232 standard

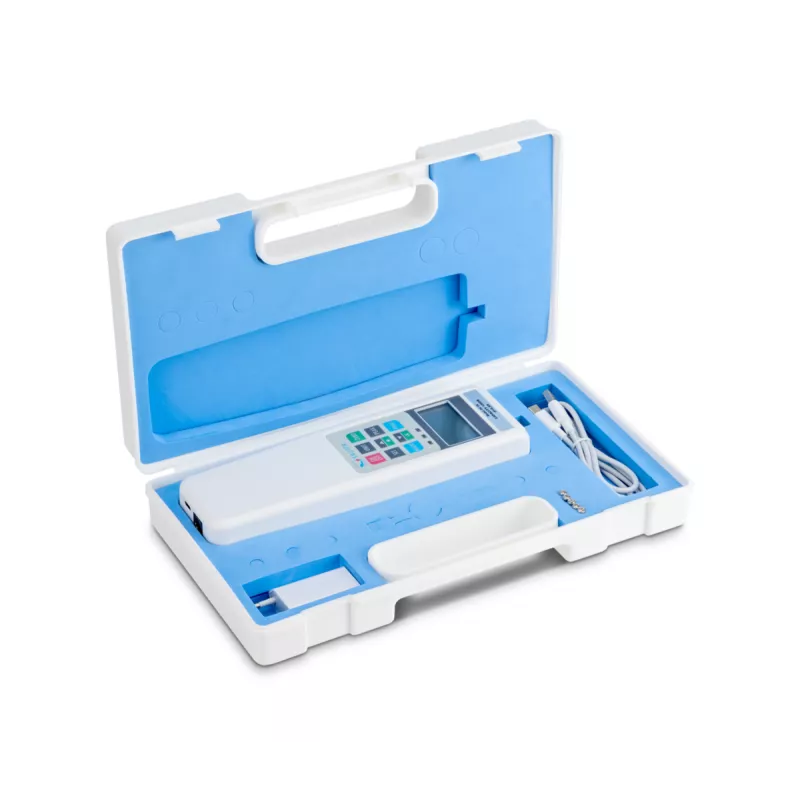

Delivered in a hard carrying case
Selectable measuring units: N, lb, kg, kN, t
Real time or Peak Hold Mode to observe transcients or capture peaks
Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed, in pull and push direction. The process is supported by an acoustic and visual signal
Auto-Power-Off
Internal memory for up to 10 measurements
Mini Statistics Kit: calculates the average result from up to ten stored single results, min., max., n
Tension loops and pressure plates are included with delivery
