Model
Characteristics
Price HT
Stock
Shipping time
Model
Characteristics
FL 2K
Characteristics
Measuring range [Max] N:
2500 N (2.5 kN)
Readout [d] N:
1 N
Option Factory calibration certificate (Tensile):
Option Factory calibration certificate (Pressure):
Option Factory calibration certificate (Tensile/Pressure):
€820.00 HT
Price HT
Stock
Shipping time
Action
20
Available from stock
48 - 72h
Model
Characteristics
FL 5K
Characteristics
Measuring range [Max] N:
5000 N (5 kN)
Readout [d] N:
2 N
Option Factory calibration certificate (Tensile):
Option Factory calibration certificate (Pressure):
Option Factory calibration certificate (Tensile/Pressure):
€890.00 HT
Price HT
Stock
Shipping time
Action
13
Available from stock
48 - 72h
Model
Characteristics
FL 10K
Characteristics
Measuring range [Max] N:
10000 N (10 kN)
Readout [d] N:
5 N
Option Factory calibration certificate (Tensile):
Option Factory calibration certificate (Pressure):
Option Factory calibration certificate (Tensile/Pressure):
€990.00 HT
Price HT
Stock
Shipping time
Action
10
Available from stock
48 - 72h
Model
Characteristics
FL 20K
Characteristics
Measuring range [Max] N:
20000 N (20 kN)
Readout [d] N:
10 N
Option Factory calibration certificate (Tensile):
Option Factory calibration certificate (Pressure):
Option Factory calibration certificate (Tensile/Pressure):
€990.00 HT
Price HT
Stock
Shipping time
Action
20
Available from stock
48 - 72h
Description

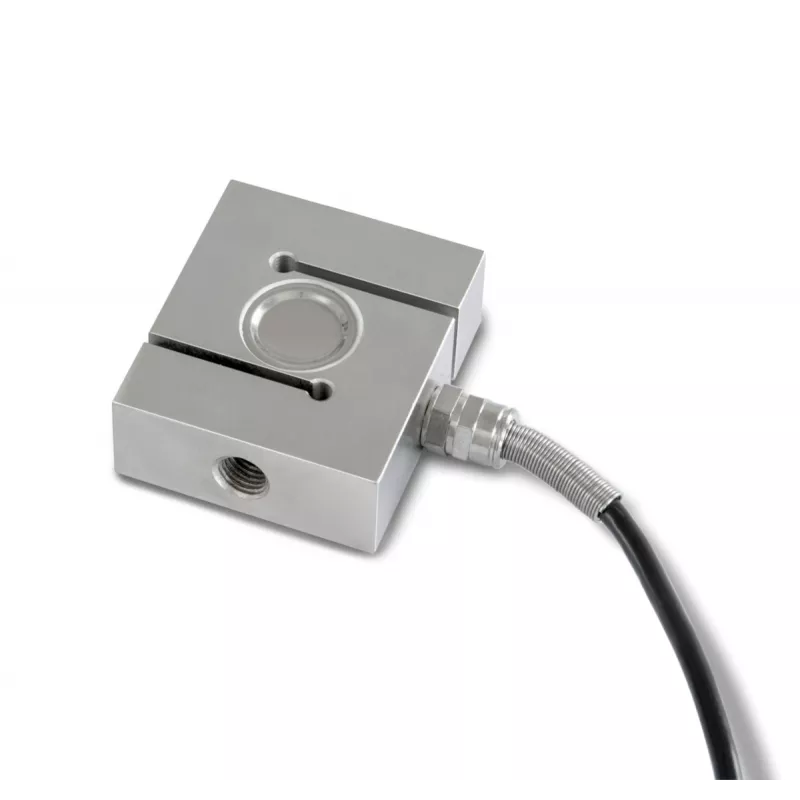

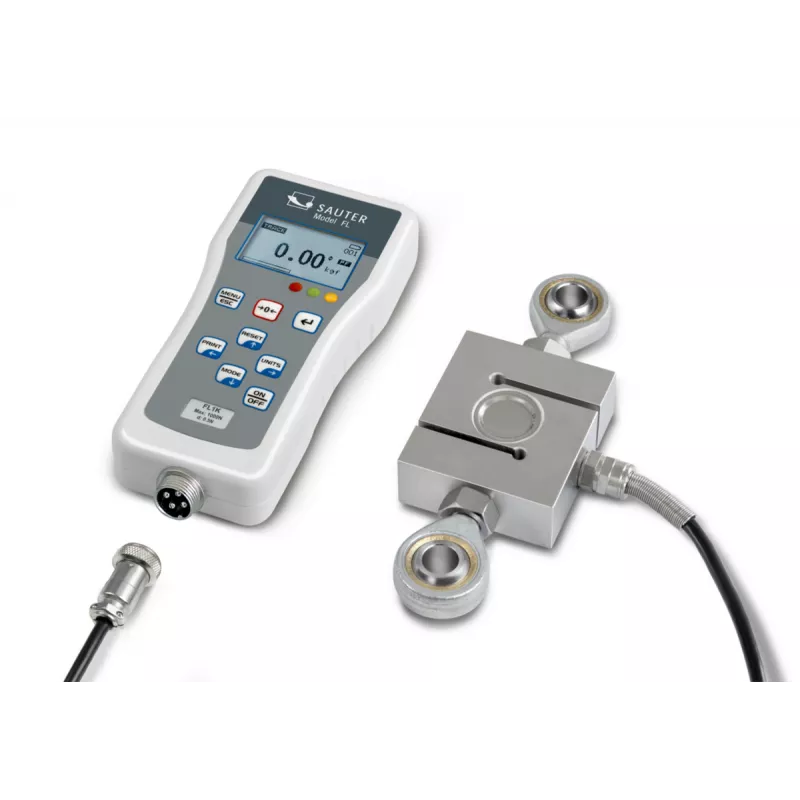

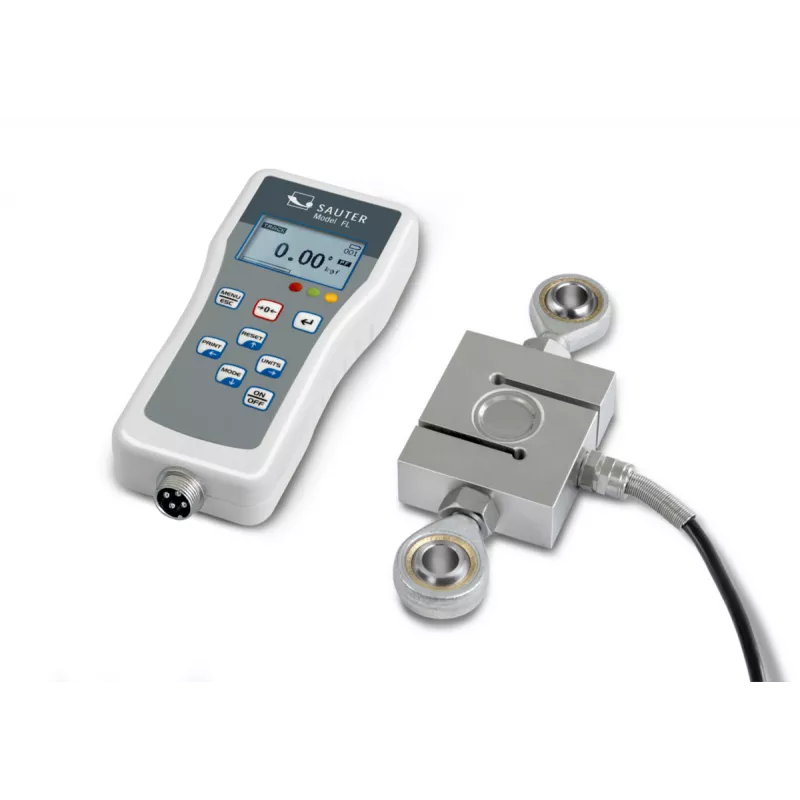

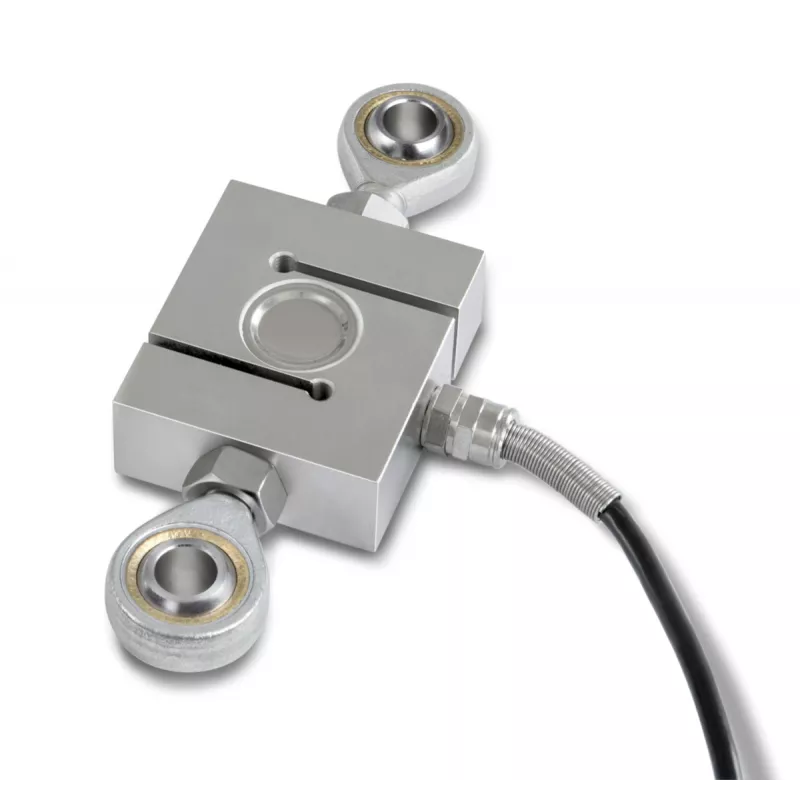

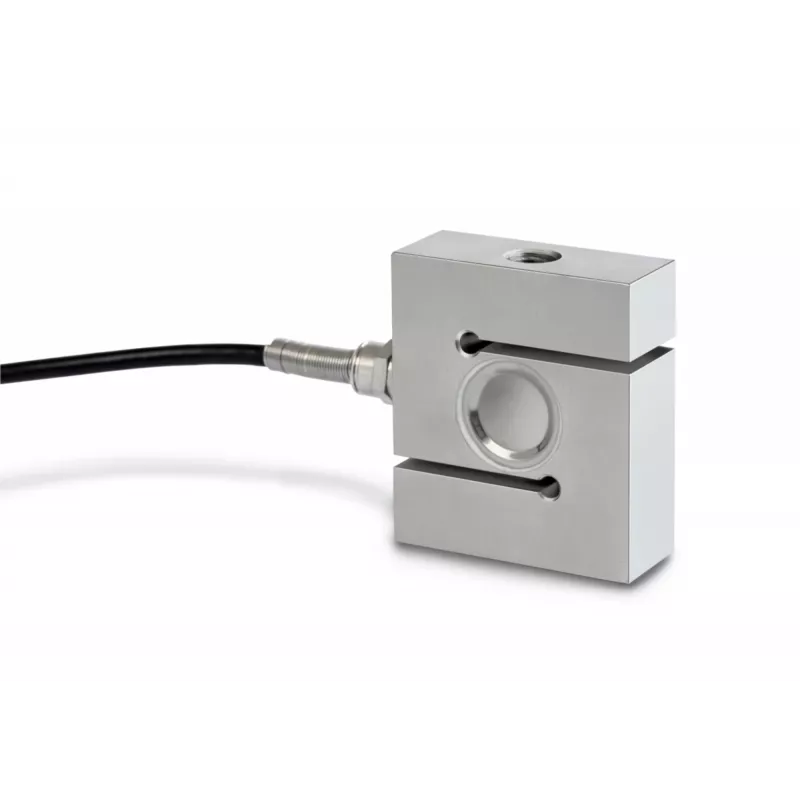

- Premium force-measuring device external measuring cell, tension loops included with delivery

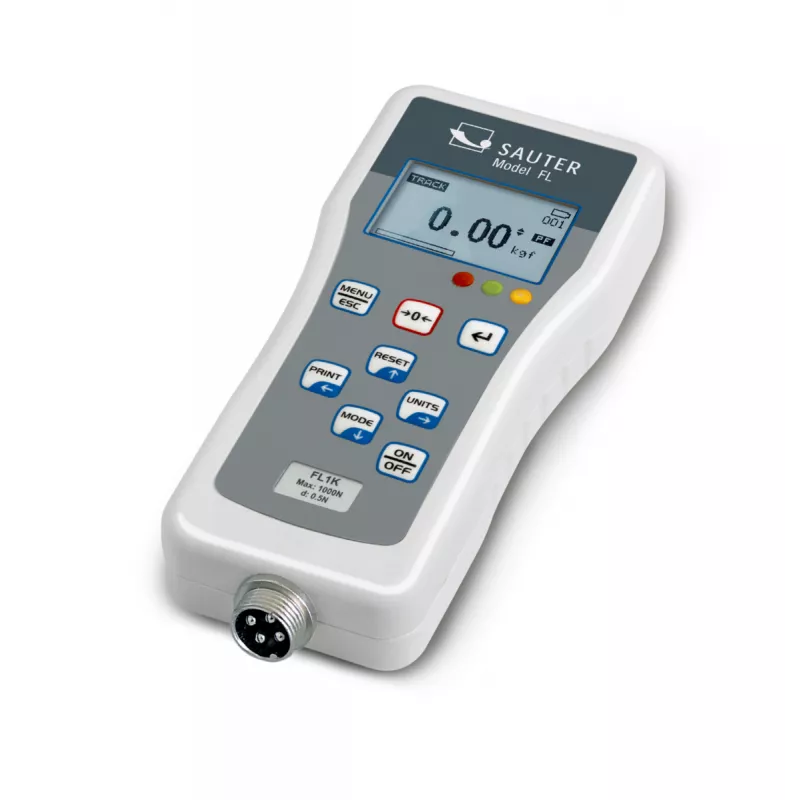

- Turnable display with backlight
- Real time or Peak Hold Mode to observe transcients or capture peaks
- Metal housing for durable usage in harsh environmental conditions
- Can be mounted on all SAUTER test stands
- Capacity display: A bar lights up to show how much of the measuring range is still available
- Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed, in pull and push direction. The process is supported by an acoustic and visual signal
- Internal memory for up to 500 measurements
- Continuous analogue output: Linear voltage signal in relation to the load (-2 – +2 V)
- Selectable measuring units: N, kN, kg, oz, lb
-

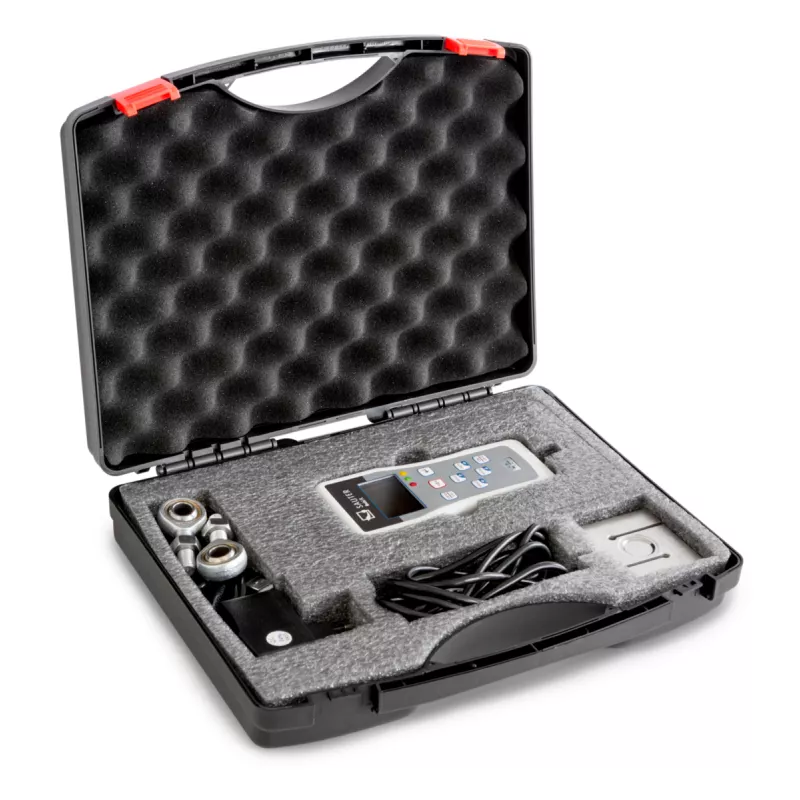

Delivered in a hard carrying case
Specific references
- EAN13
- 4045761138919
