Platform with low profile in stainless steel (1500kg-3000kg) BAXTRAN RGI

€3,730.00 Tax excluded

€3,730.00 - €4,512.00

Condition

New

Reference

260735

BAXTRAN RGI ► Structure in Steel sheet of 5 mm thick/ Installation on ground with an access ramp/ Stainless steel indicator, model GI400i/ 4 load cells scale

Read the full description

Click here to view product combination list.

Platform PlatformScale IndustrialScale Scale IndustrialBalance IP65Protection IP67Protection PlatformBalance CountingScale Ramp Steel CountingBalance

Obtain technical data

Model

Characteristics

Certificate / Verification

Price HT

Stock

Shipping time

Model

Characteristics

Certificate / Verification

260735

Characteristics

Weighing range [Max]:

1500 kg (1,5t)

Readout [d]:

500 g

Weighing surface:

1200 mm × 1200 mm

Material weighing plate:

Acier inoxydable

Rechargeable battery:

Accu optional

Indicator material:

Stainless steel

Protection class:

IP 65

Certificate / Verification

DAkkS Calibration Certificate optional:

Homologation [M] Vignette:

€3,730.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

14 - 21J

Model

Characteristics

Certificate / Verification

260736

Characteristics

Weighing range [Max]:

3000 kg (3t)

Readout [d]:

1000 g (1kg)

Weighing surface:

1200 mm × 1200 mm

Material weighing plate:

Acier inoxydable

Rechargeable battery:

Accu optional

Indicator material:

Stainless steel

Protection class:

IP 65

Certificate / Verification

DAkkS Calibration Certificate optional:

Homologation [M] Vignette:

€3,730.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

14 - 21J

Model

Characteristics

Certificate / Verification

260737

Characteristics

Weighing range [Max]:

1500 kg (1,5t)

Readout [d]:

500 g

Weighing surface:

1500 mm × 1200 mm

Material weighing plate:

Acier inoxydable

Rechargeable battery:

Accu optional

Indicator material:

Stainless steel

Protection class:

IP 65

Certificate / Verification

DAkkS Calibration Certificate optional:

Homologation [M] Vignette:

€4,108.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

14 - 21J

Model

Characteristics

Certificate / Verification

260738

Characteristics

Weighing range [Max]:

3000 kg (3t)

Readout [d]:

1000 g (1kg)

Weighing surface:

1500 mm × 1200 mm

Material weighing plate:

Acier inoxydable

Rechargeable battery:

Accu optional

Indicator material:

Stainless steel

Protection class:

IP 65

Certificate / Verification

DAkkS Calibration Certificate optional:

Homologation [M] Vignette:

€4,108.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

14 - 21J

Model

Characteristics

Certificate / Verification

260740

Characteristics

Weighing range [Max]:

3000 kg (3t)

Readout [d]:

1000 g (1kg)

Weighing surface:

1500 mm × 1500 mm

Material weighing plate:

Acier inoxydable

Rechargeable battery:

Accu optional

Indicator material:

Stainless steel

Protection class:

IP 65

Certificate / Verification

DAkkS Calibration Certificate optional:

Homologation [M] Vignette:

€4,512.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

14 - 21J

Description

FEATURES:

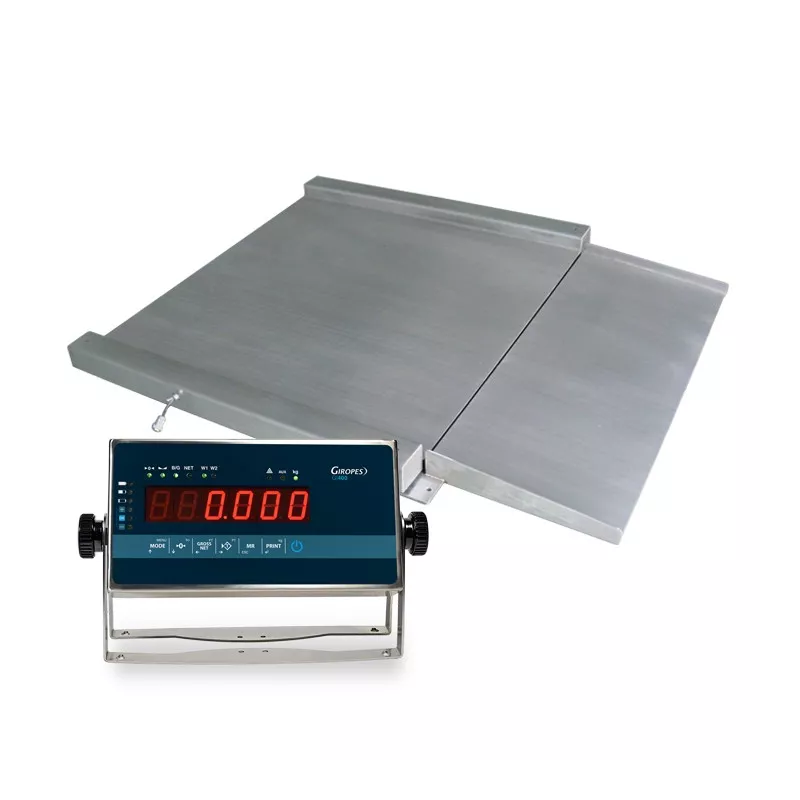

Platform with 4 load cells, with low profile in stainless steel.
It can be used in legal metrology.
Installation on ground with an access ramp.
Structure in Steel sheet of 5 mm thick.
With anchor plates foro n-ground fixation.
Load cells OIML R-60 C3, in stainless Steel, IP67 protection.
Junction box in ABS, IP66 protection.
Adjustable feet in height.

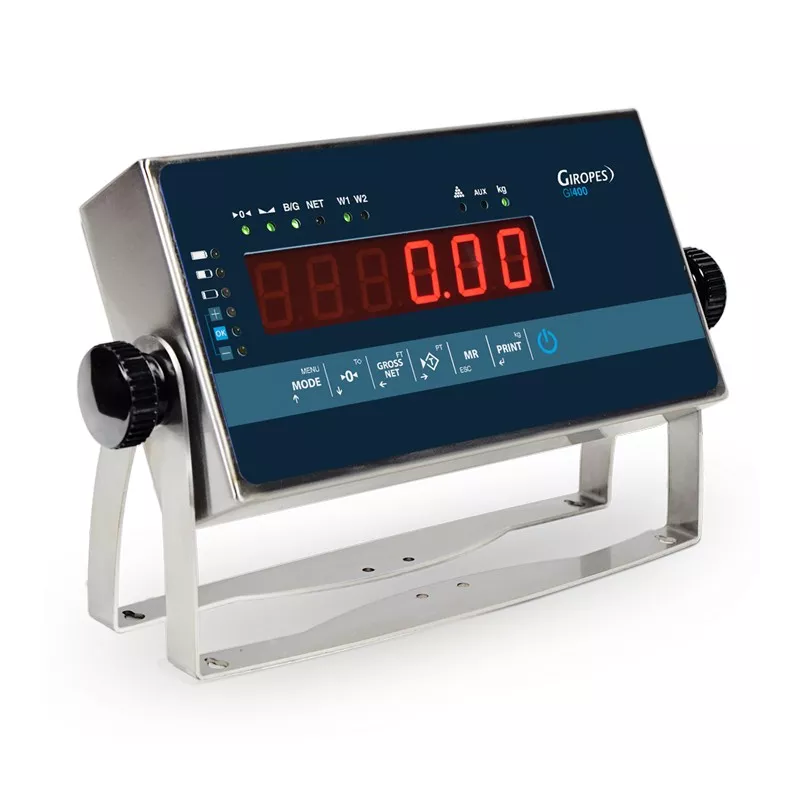

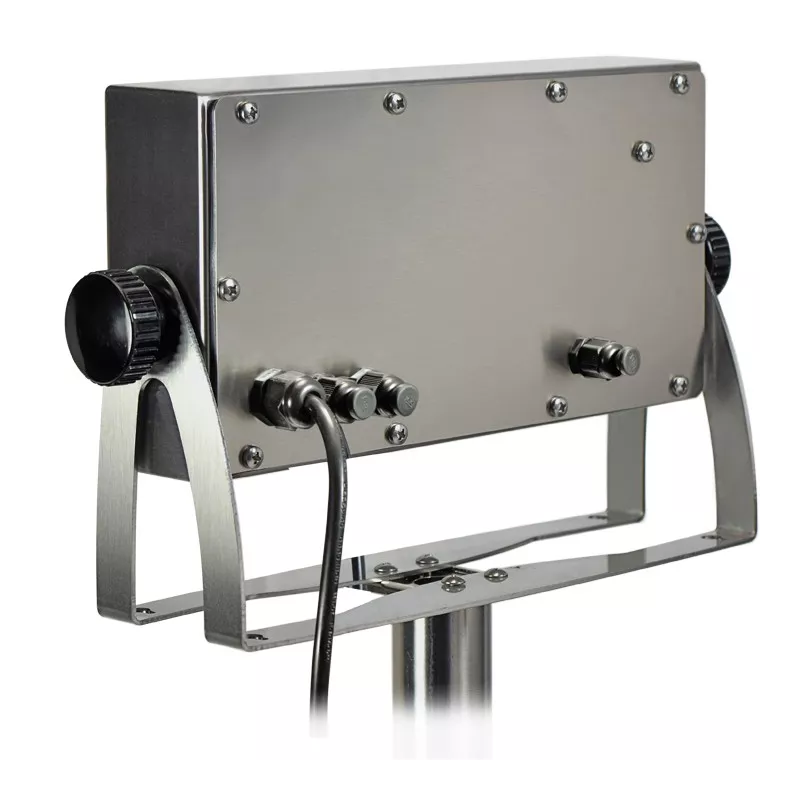

Stainless steel indicator, model GI400i.
IP65 protection.
Backlight LCD display red of 6 digits of 25 mm.
Holes for Wall anchor included.
Power supply with adaptor 230 Vac.
2 RS232 output.
Unique range, multi-range or multi-interval.
Units: kg.
Approval type at 6000 divisions OIML class III and IV.
EC approval.

FUNCTIONS:

Weight accumulation: automatic/manual
Totalization on screen
Manual tare and pretare
Back to zero
Piece couting function
Checkweigher with LCD signal
Function division 1/10 verification. Display for a few seconds.
Gross/Net

Downloads

Brochure BAXTRAN RGI (FR)

Download (0)

Mode d'emploi BAXTRAN RGI (FR)

Download (0)

Brochure BAXTRAN RGI (EN)

Download (0)

Usage manual BAXTRAN RGI (EN)

Download (0)

Dépliant BAXTRAN RGI (IT)

Download (0)

Istruzioni BAXTRAN RGI (IT)

Download (0)

Einzelprospekt BAXTRAN RGI (GE)

Download (0)

Betriebsan. BAXTRAN RGI (GE)

Download (0)

Folleto BAXTRAN RGI (ES)

Download (0)

Instrucciones BAXTRAN RGI (ES)

Download (0)

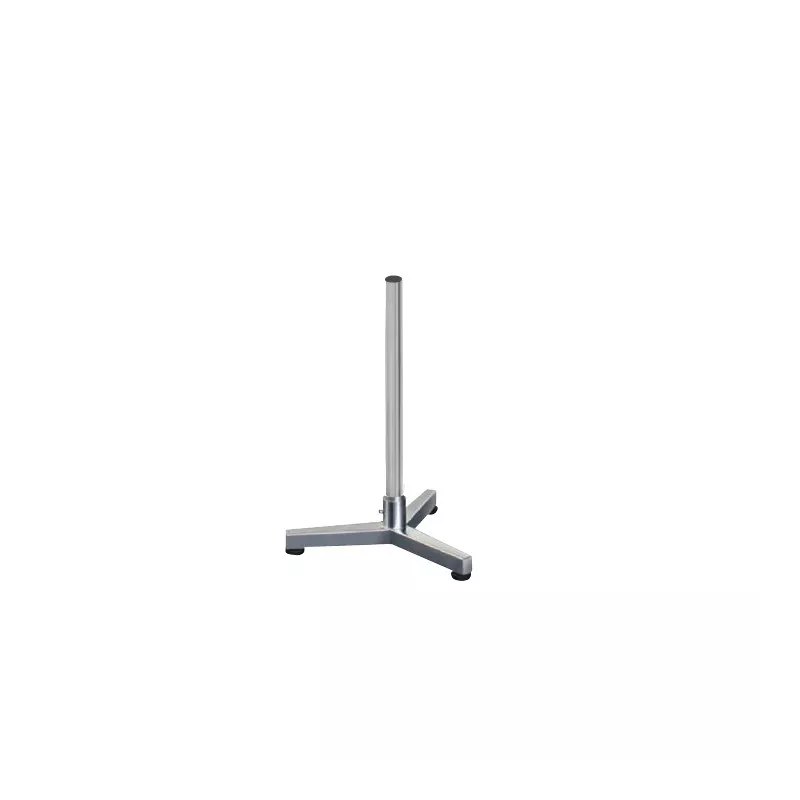

Stainless steel column
