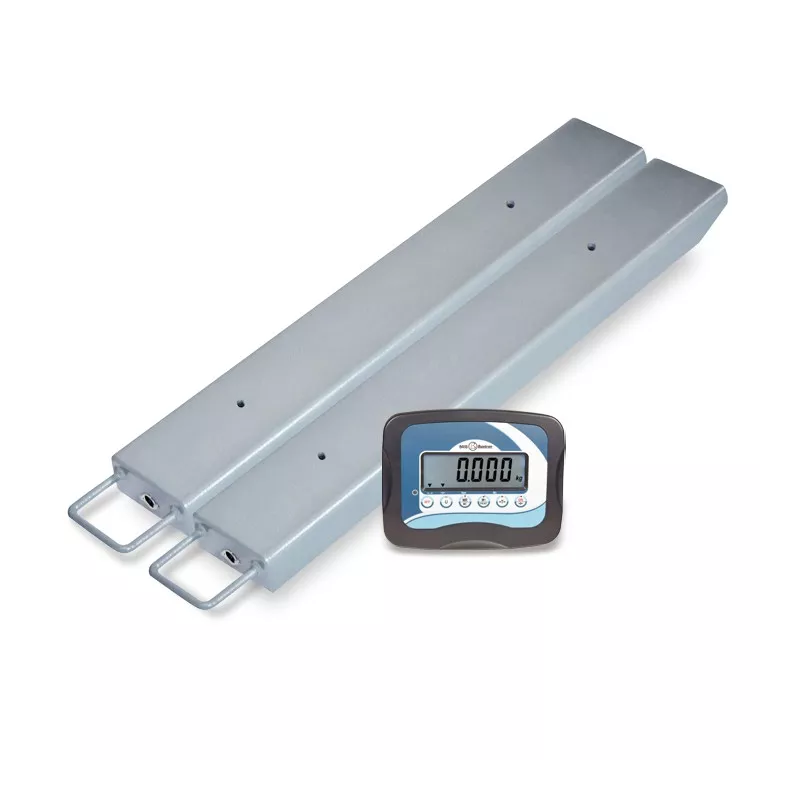

Weighing bars in painted steel (3000kg) BAXTRAN XFI | Interbalances

Weighing bars in painted steel (3000kg) BAXTRAN XFI

€626.00 Tax excluded

€626.00 - €676.00

Condition

New

Reference

260741

BAXTRAN XFI ► Weighing bars, the cheapest option. With a design that facilitates their transport and speeds up their assembly/ 4 load cells scale

Description complète et documents

Click here to view product combination list.

Balance IndustrialScale Scale IndustrialBalance CountingScale Steel CountingBalance Weighing BAXTRAN 4LoadCellsScale BalanceBaxtran Painted

Obtain technical data

Model

Characteristics

Certificate / Verification

Price HT

Stock

Shipping time

Model

Characteristics

Certificate / Verification

260741

Characteristics

Weighing range [Max]:

3000 kg (3t)

Readout [d]:

1000 g (1kg)

Measurements:

800 mm x 120 mm

Material weighing plate:

Acier paint

Rechargeable battery:

included

Indicator material:

ABS plastic

Protection class:

IP 54

Certificate / Verification

DAkkS Calibration Certificate optional:

€626.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

Certificate / Verification

260742

Characteristics

Weighing range [Max]:

3000 kg (3t)

Readout [d]:

1000 g (1kg)

Measurements:

1250 mm x 120 mm

Material weighing plate:

ABS

Rechargeable battery:

included

Indicator material:

ABS plastic

Protection class:

IP 54

Certificate / Verification

DAkkS Calibration Certificate optional:

€676.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

FEATURES:

Weighing bars.
On-ground installation.
They are supplied in pairs.
Painted steel.

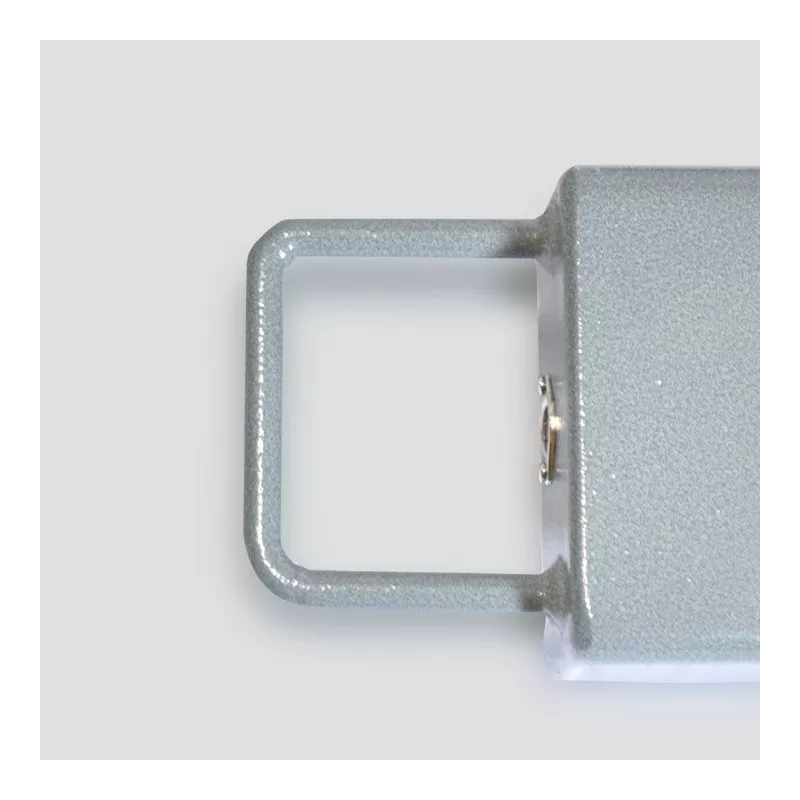

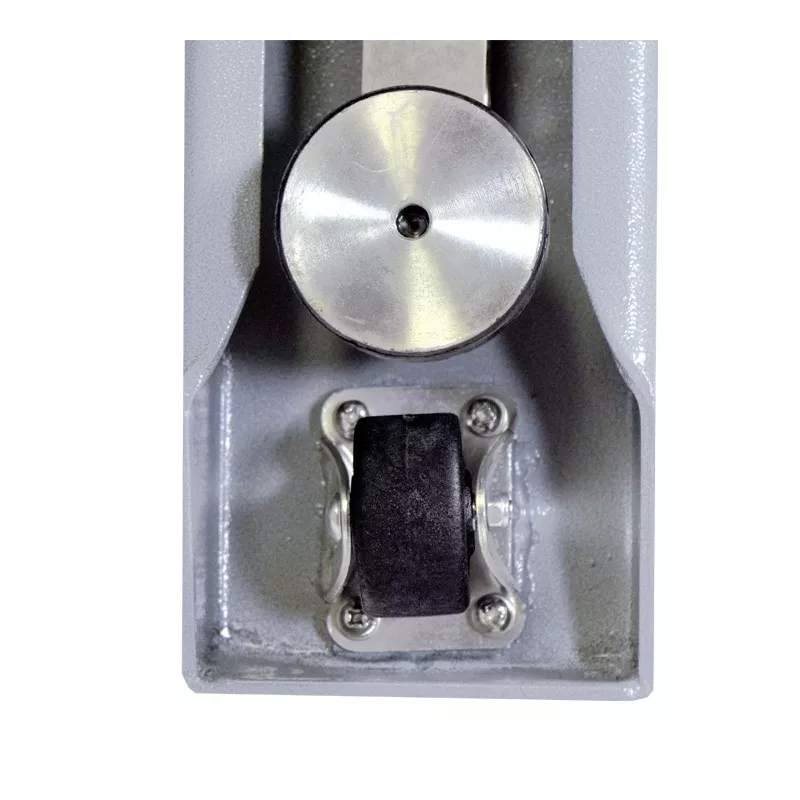

Bars with handles and wheels for their transport. Their lower part is completely uncovered.

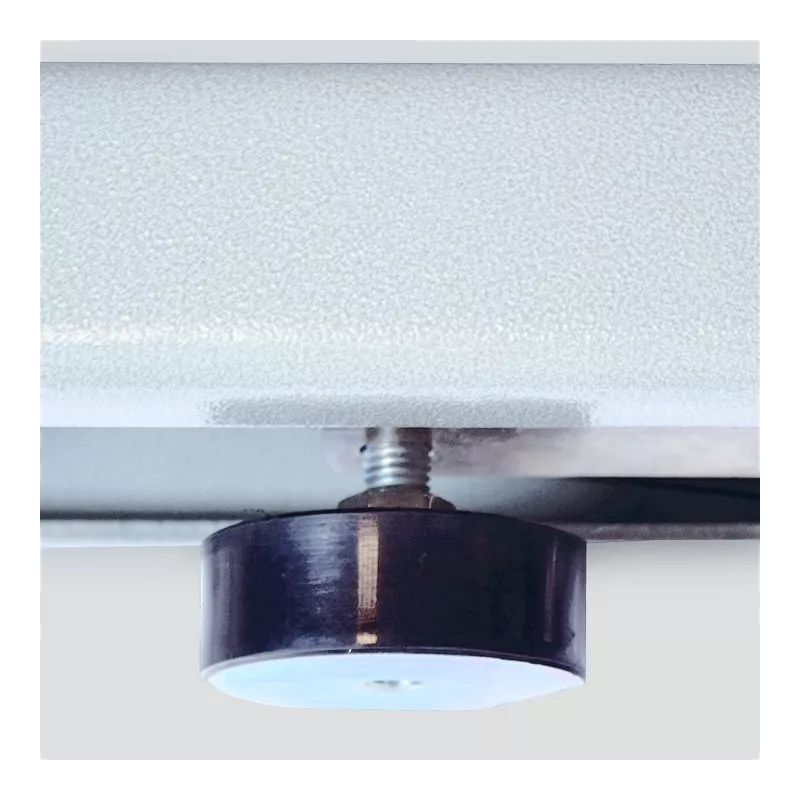

Adjustable levelling feet. Version with rigid feet (XFI803Z) and pivot feet (XFI1203Z) which help to achieve a lesser bar distortion.
Load cells in aluminium, IP68.
Interconnecting cables with connector.
ABS indicator, model BR15.
Backlight LCD display with six 30 mm height digits.
Backlight of the display with 3 types: automatic, activated and deactivated.
IP54 protection.
Waterproof keyboard with 5 function keys and ON/OFF keys.
Power supply with adaptor AC/DC 110-240Vac 50-60 Hz.
Rechargeable internal battery 6V/4Ah.
RS232 output PC and print formats.
Auto switch off (programmable: from 1 to 99 minutes).
2 meters of cable for each weighing bar with a single connector.

FUNCTIONS:

Accumulation
Totalization
Piece counting
Zero
Hold 4 modes: deactivate, filter for animals, peak value, stable weight and stable weight with auto cancel in zero
Checkweighing function visual and alarm signals
Three speeds of AD converter (high, medium and low)
Gross/Net
Tare
