Ultrasonic thickness gauge SAUTER TU-US | Interbalances

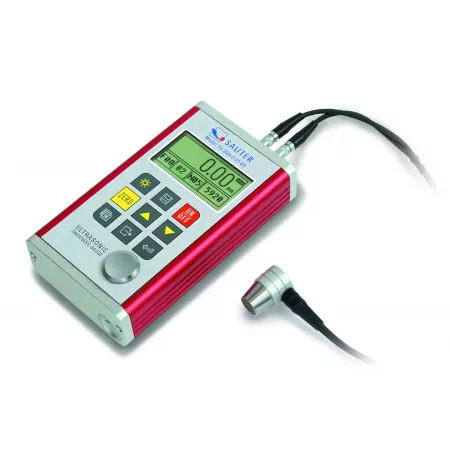

Ultrasonic thickness gauge SAUTER TU-US

€1,270.00 Tax excluded

Condition

New

Reference

TU 80-0.01US

SAUTER TU-US ► Premium ultrasonic thickness gauge

Read the full description

Click here to view product combination list.

Obtain technical data

ThicknessGauge Thickness ExternalSensor Gauge UltrasonicThicknessGauge TU-US TU SAUTER SAUTERTU-US Premium Ultrasonic TU80-0.01US

Modèles

TU 80-0.01US See specifications

Measuring range Plus-Echo (mm): 0,75 – 80 mm

Readout [d] mm: 0.01 mm

Test frequency (MHz): 7 MHz

Sonde Ø (mm): Ø 6 mm

Sound velocity (m/sec): 1000 - 9999 m/sec

Option Factory calibration certificate: ✓

€1,270.00 HT

12 en stock

48 - 72h

Description

External sensor for difficult-to-access measurements
Base plate for adjustment included
Data interface RS-232
Delivered in a hard carrying case
Scan mode (10 measurements per sec.) or single point measuring mode possible
Internal memory for up to 20 files (with up to 100 values per file)
Function to set limits, programming of Max./Min., in pull and push direction, with output of audible and optical signal. Ideal mode for efficient and accurate testing of standard parts
Selectable measuring units: mm, inch
Robust metal housing
