Model
Characteristics
Price HT
Stock
Shipping time
Model
Characteristics
HDA 100-1
Characteristics
Hardness type:
Shore A
Measuring range [Max]:
100 HA
Readout [d]:
1,0 HA
€420.00 HT
Price HT
Stock
Shipping time
Action
20
Available from stock
48 - 72h
Model
Characteristics
HDD 100-1
Characteristics
Hardness type:
Shore D
Measuring range [Max]:
100 HD
Readout [d]:
1,0 HD
€420.00 HT
Price HT
Stock
Shipping time
Action
20
Available from stock
48 - 72h
Description

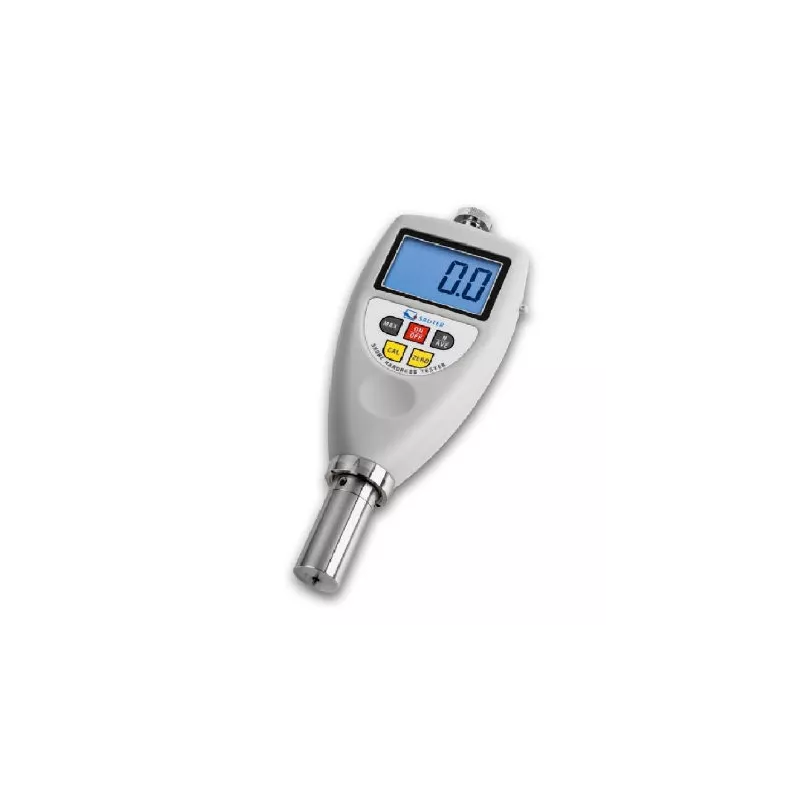

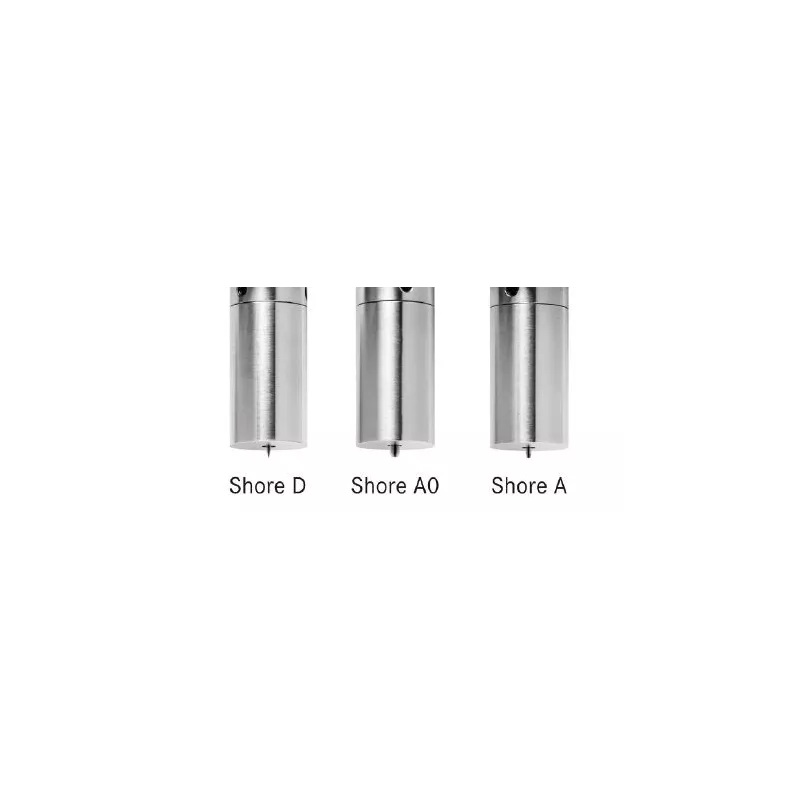

- Shore A, 0 and D to measure the hardness of plastics through penetration measurement
- Shore A rubber, elastomers, neoprene, silicone, vinyl, soft plastics, felt, leather and similar material
- Shore 0 foam, sponge
- Shore D plastics, formica, epoxides, plexiglass etc.

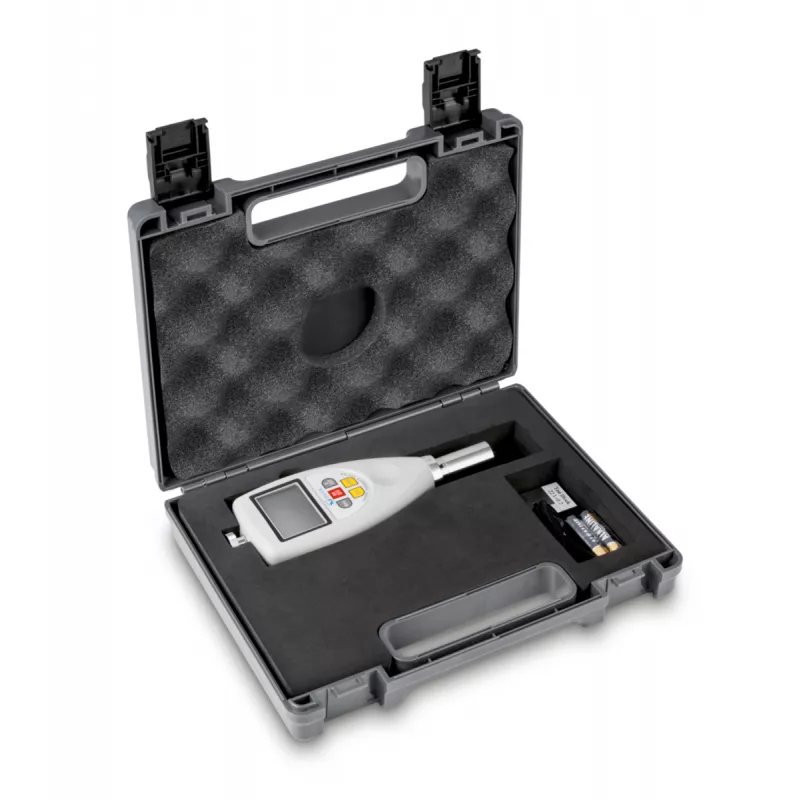

- Material thickness of the sample: min. 4 mmDelivered in a hard carrying case
- Particularly recommended for internal comparison measurement. Standard calibrations e. g. to DIN 7619-1 are often not possible because of very narrow standard tolerances
- Can be attached to the test stands TI-ACL (for Shore A and A0), TI-DL (for Shore D) to improve measuring uncertainty
- Large display with backlight
- Selectable: AUTO-OFF function or permanent operation, battery level indicator
- hardness comparison plates see SAUTER AHBA-01 and SAUTER AHBD-01
Specific references
- EAN13
- 4045761139589
