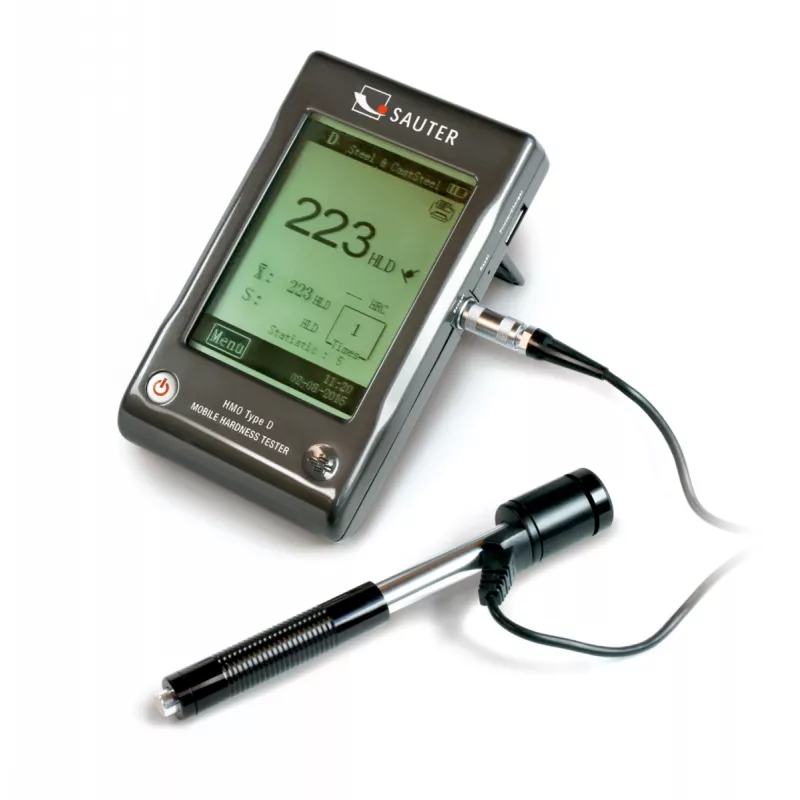

Mobile Leeb hardness tester HMO

€2,020.00 Tax excluded

Condition

New

Reference

HMO

SAUTER HMO ► Advanced features for professional applications

Read the full description

Click here to view product combination list.

Tester HMO SAUTER Hardness Applications Professional Advanced Mobile Features Leeb

Obtain technical data

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

HMO See specifications

Characteristics

Measuring range [Max] HL:

170 – 960 HL

Readout [d] HL:

1

Sensor:

Type D

Weighing units:

HB HL HV HRB MPa HRC

Option Factory calibration certificate:

€2,020.00 HT

Price HT

Stock

Shipping time

Action

9

Available from stock

48 - 72h

Description

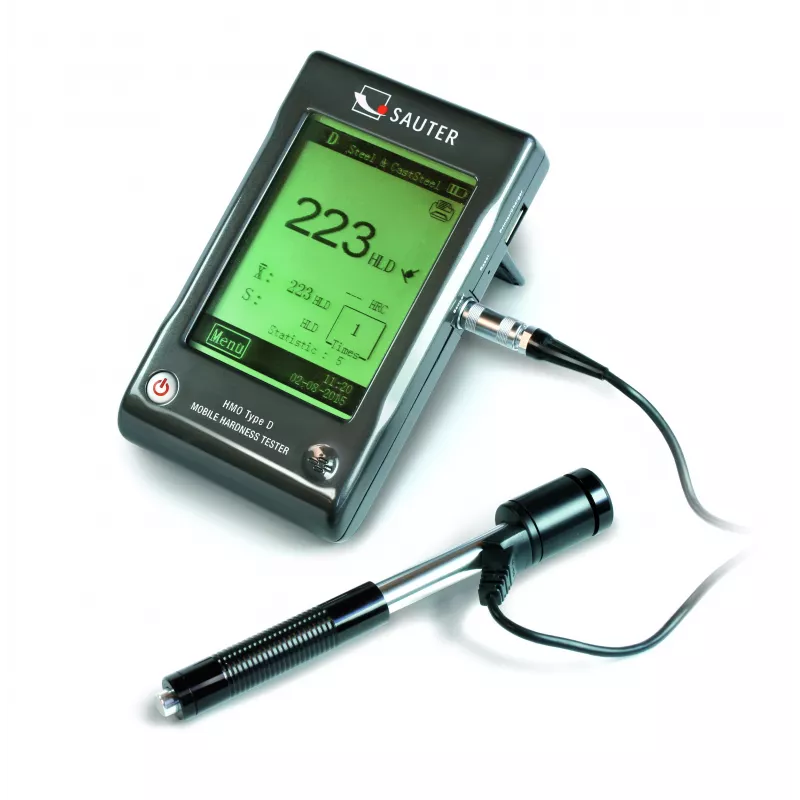

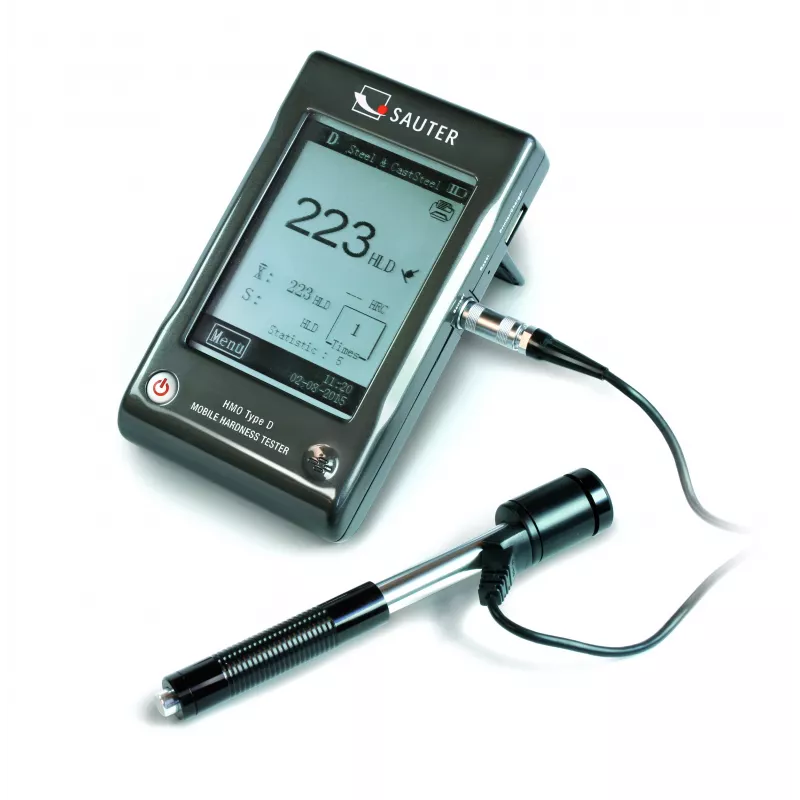

Innovative touchscreen
Automatic recognition of the impact (rebound) sensor connected to the HMO.

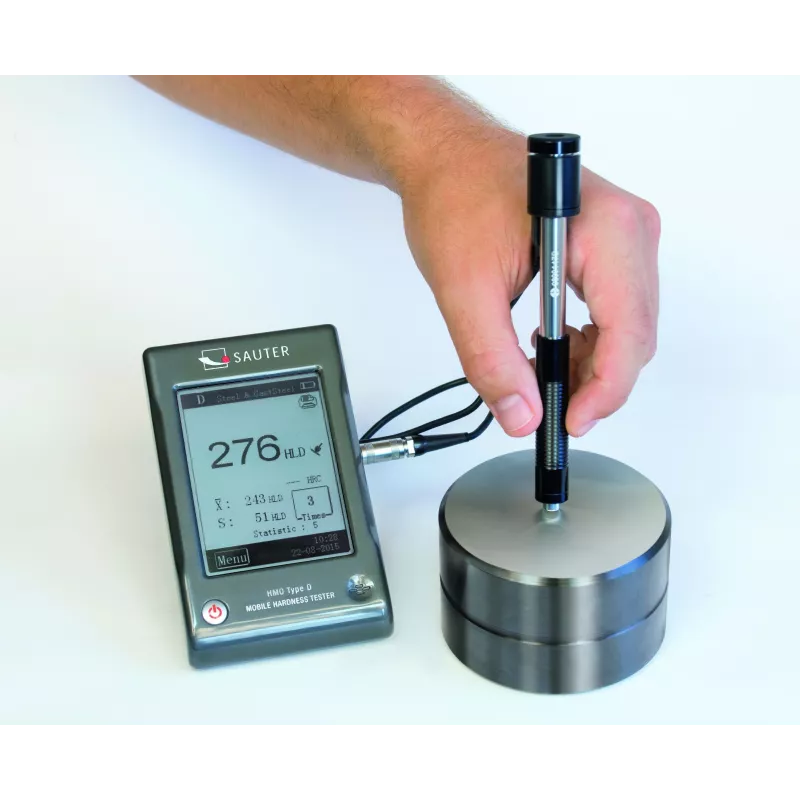

Mobility: In comparison with stationary table-top devices and testing devices with an internal sensor, using the SAUTER HMO. offers the highest level of mobility and flexibility
All measurement directions possible (360°) thanks to an automatic compensation function

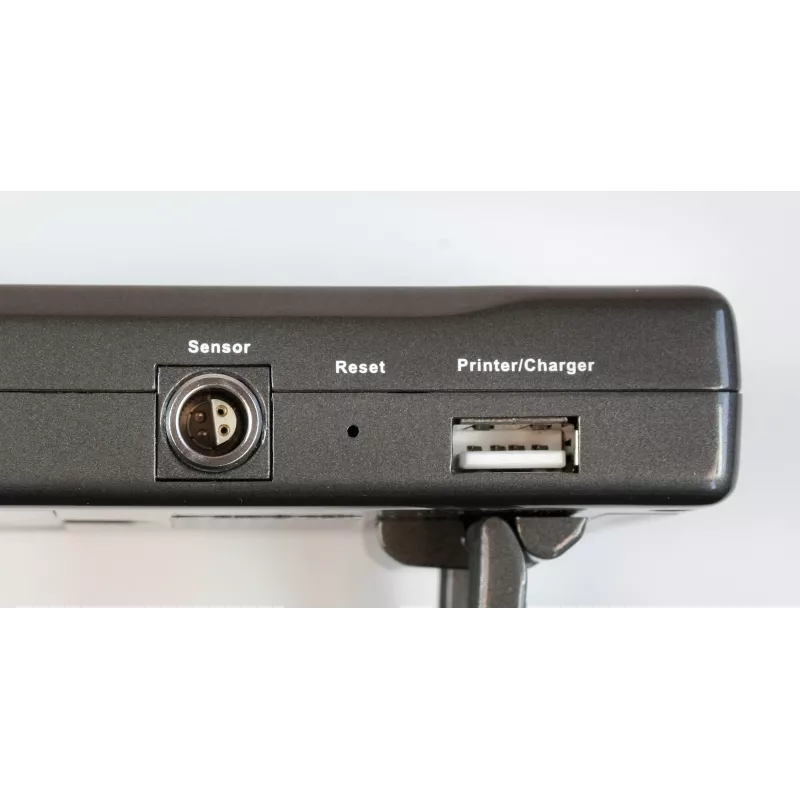

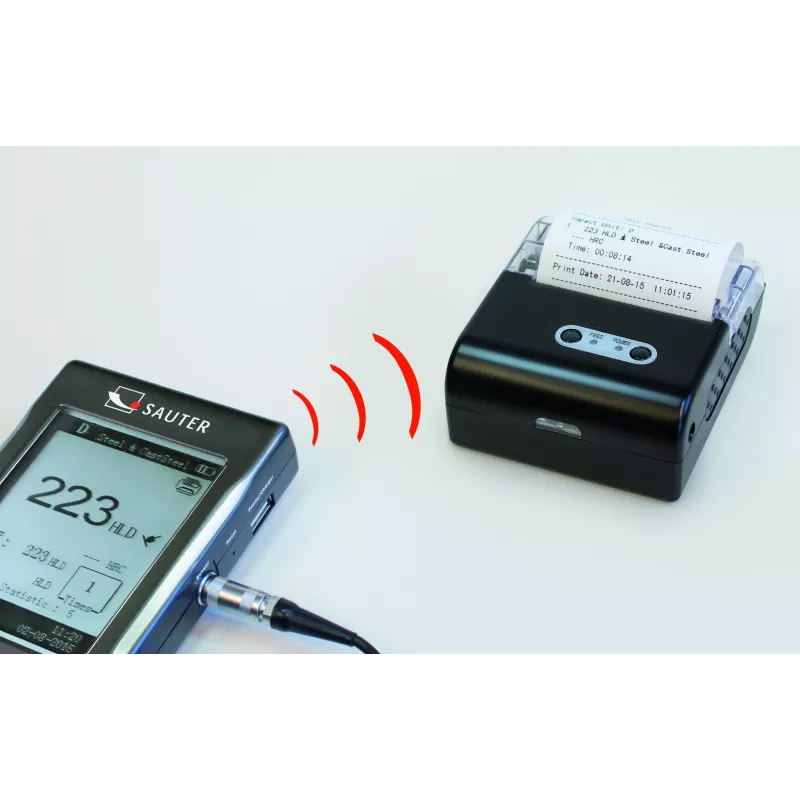

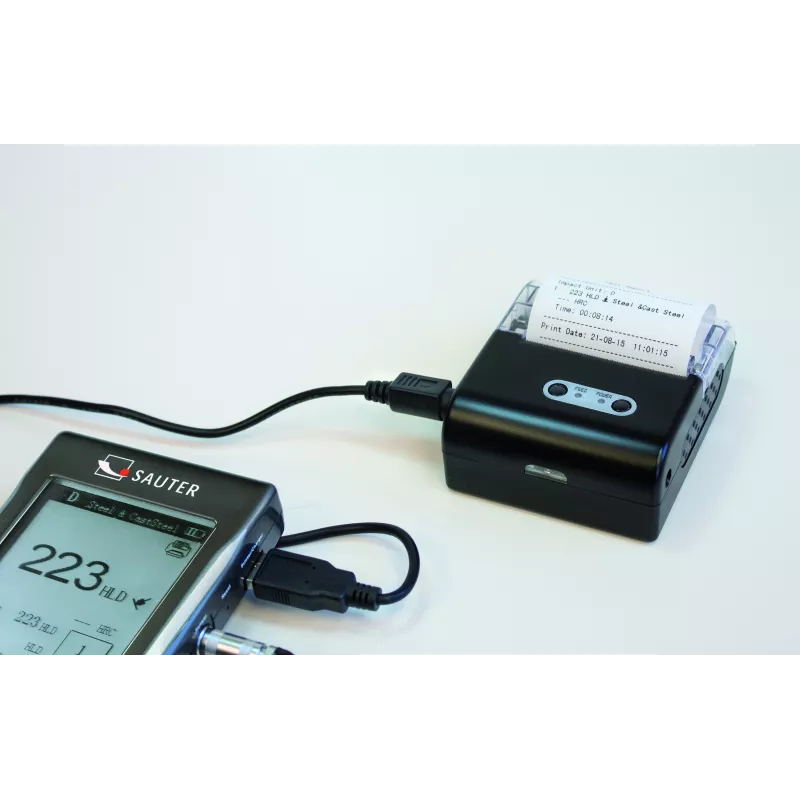

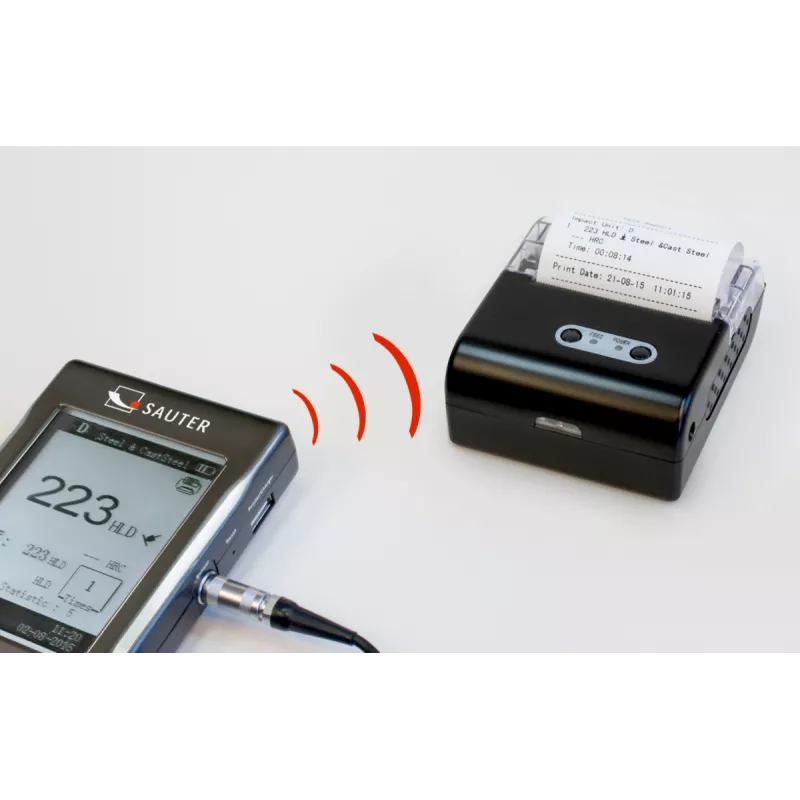

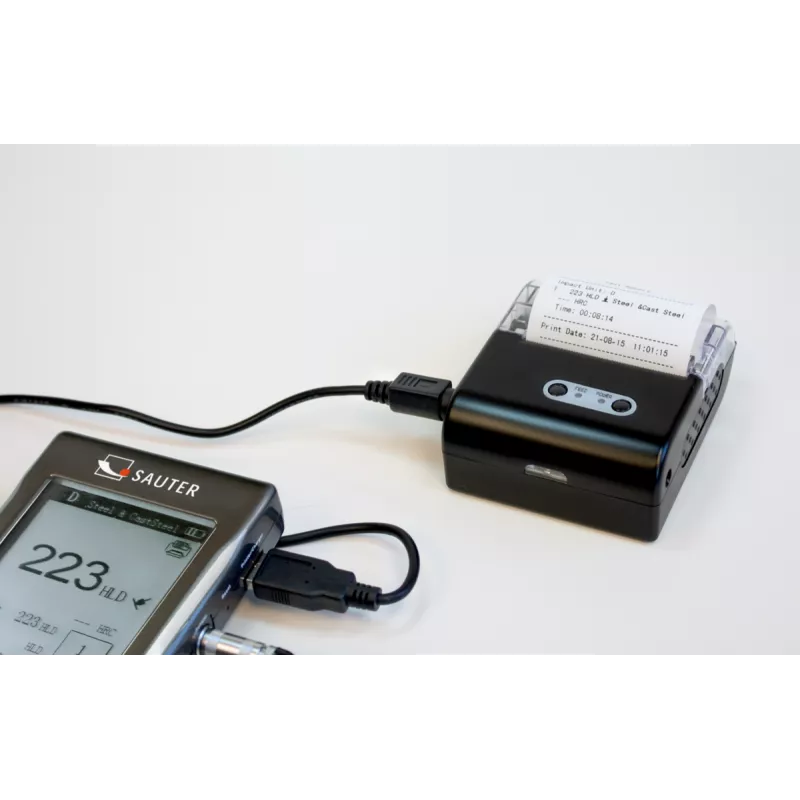

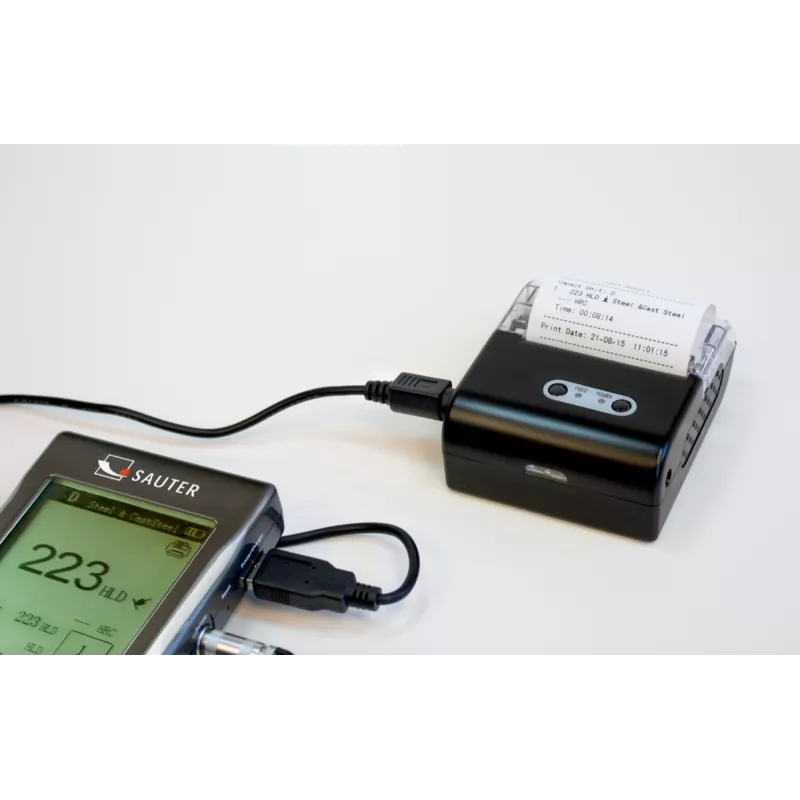

USB interface for connection to the printer and charging the batteries

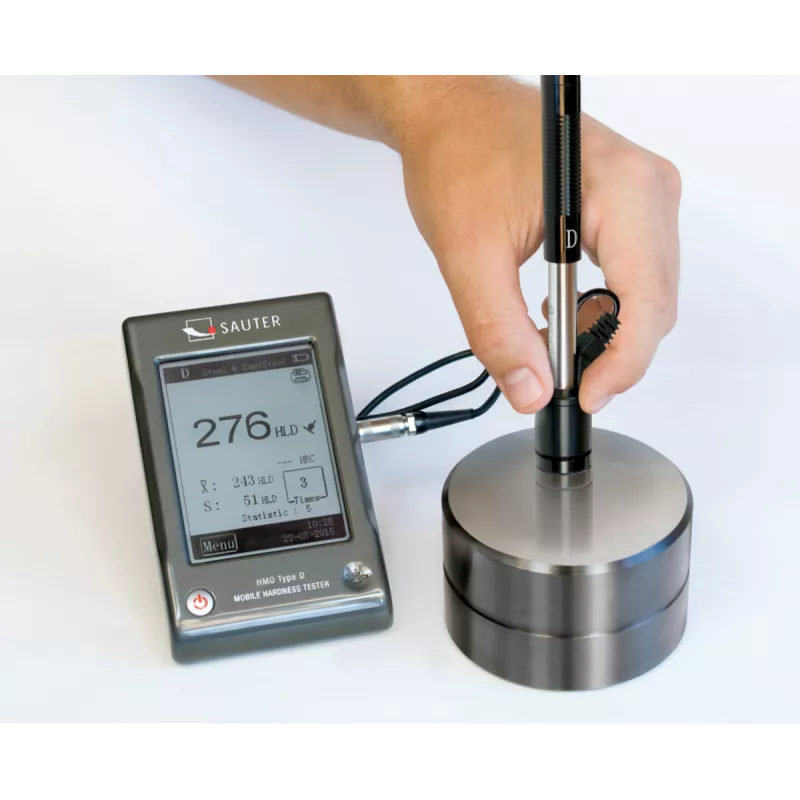

Standard block for calibration included

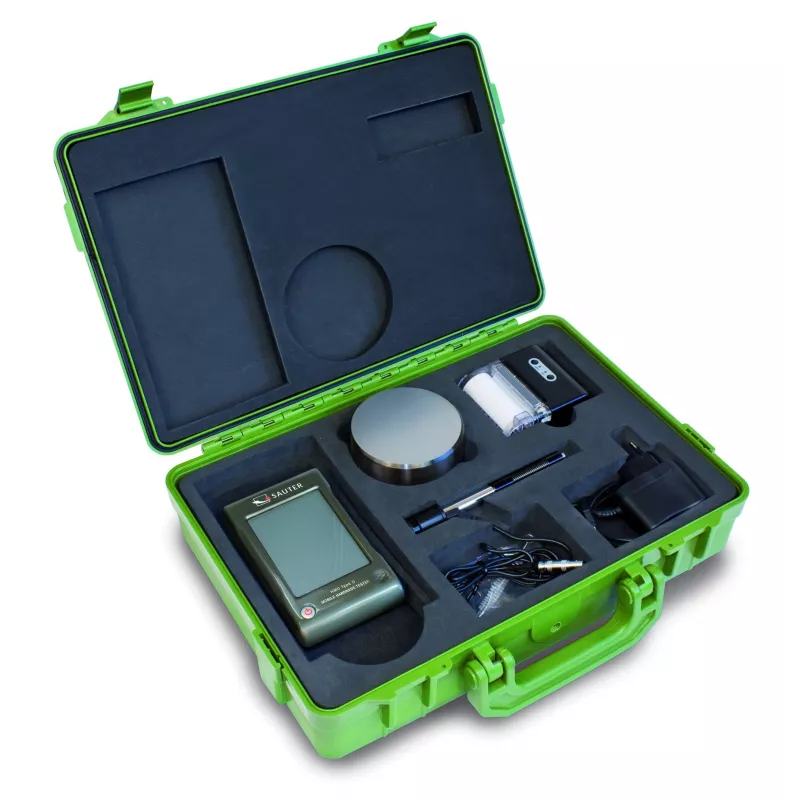

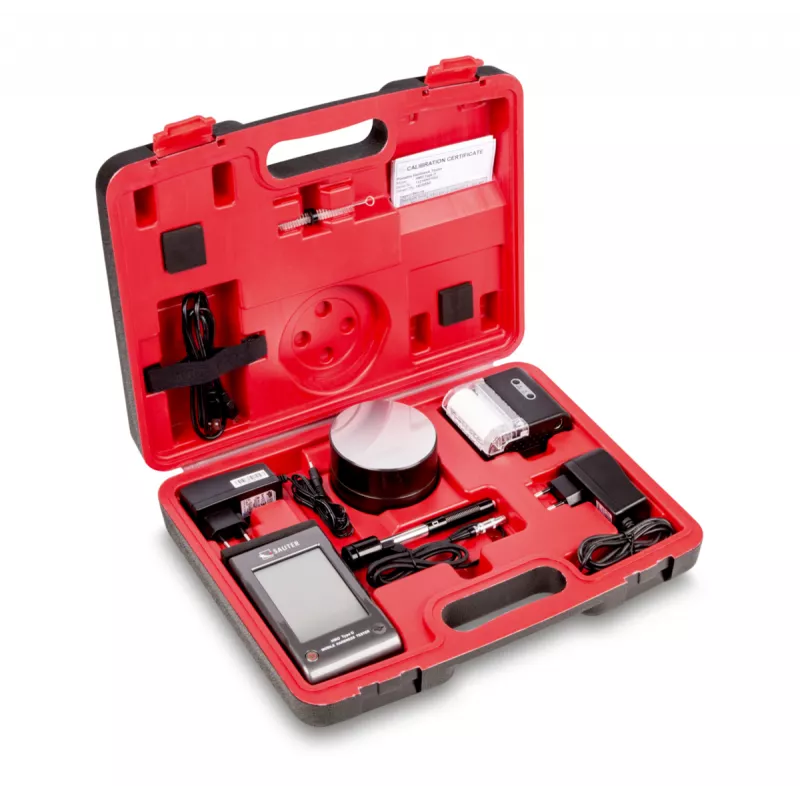

Delivered in a hard carrying case
Internal memory up to 800 values
Mini statistics function: Displays the measure value, the average value, the difference between the maximum and minimum values, date and time
Measurement value display: Rockwell (B & C), Vickers (HV), Brinell (HB), Shore (HSD), Leeb (HL), tensile strength (MPa)
Automatic unit conversion: The measuring result is automatically converted into all specified hardness units

Technical data

Precision: 1 % 800 HLD (± 6 HLD)
Measuring range tensile strength: 375 - 2639 MPa (steel)
Min. sample weight on a solid and stable support:
- Sensor D + DC: 3 kg
- Sensor G: 15 kg
Minimum sample thickness:
- Sensor D + DC: 8 mm
- Sensor G: 10 mm
Minimum sample radius (concave/convex): 50 mm (with support ring: 10 mm)

Downloads

Brochure SAUTER HMO (FR)

Download (229.49KB)

Mode d'emploi SAUTER HMO (FR)

Download (1.32MB)

Brochure SAUTER HMO (EN)

Download (219.76KB)

Usage manual SAUTER HMO (EN)

Download (1.32MB)

Einzelprospekt SAUTER HMO (GE)

Download (229.1KB)

Betriebsan. SAUTER HMO (GE)

Download (1.32MB)

Folleto SAUTER HMO (ES)

Download (222.7KB)

Instrucciones SAUTER HMO (ES)

Download (1.32MB)

Specific references

EAN13: 4045761139664
