Description
- The KERN OBE-1 series is a range of high-quality, fully-equipped compound microscopes, which can't be beaten in terms of ease of use and ergonomic design
- The strong and continuously dimmable 3W LED guarantees optimum illumination of the samples and also ensures long service life. Mobile use of several models is also no problem through the use of rechargeable batteries
- The height-adjustable and thereby focusable 1.25 ABBE condenser with aperture diaphragm is a further quality feature of the OBE-1 series and ensures the very best concentration of light
- Height adjustment of the fully-equipped mechnical stage is carried out using a coarse and fine focusing knob on both sides. The ergonomically designed coaxial drive enables you to work with the samples and move them rapidly
- A large selection of different eyepieces, lenses, a simple polarisation unit and a dark field kit is also available
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery
- A C-mount adapter is required to connect a camera to the trinocular version. You can select this adapter from the following model outfit list
Scope of application
Training, haematology, sediment investigation, doctor's surgeries
Applications/Samples
Translucent, thin, high-contrast, less complex samples (e.g. plant tissue, coloured cells/parasites)
Technical data
- Finite optical system (DIN)
- 4-fold lens revolving unit
- Siedentopf 30° inclined, 360° rotatable
- Dioptre compensation one-sided (for binocular and trinocular models)
- Overall dimensions W×D×H 320×180×365 mm
- Net weight approx. 4,5 kg
For information on the accessories which are supplied as standard, please see the individual brochures for the models, see document downloads in the table
Brochure KERN OBE-1 (FR)
Download (202.95KB)Mode d'emploi KERN OBE-1 (FR)
Download (1.61MB)Brochure KERN OBE-1 (EN)
Download (200.41KB)Usage manual KERN OBE-1 (EN)
Download (1.22MB)Dépliant KERN OBE-1 (IT)
Download (201.51KB)Istruzioni d'uso KERN OBE-1 (IT)
Download (1.07MB)Einzelprospekt KERN OBE-1 (GE)
Download (203.59KB)Betriebsan. KERN OBE-1 (GE)
Download (1.84MB)Folleto KERN OBE-1 (ES)
Download (203.95KB)Instrucciones KERN OBE-1 (ES)
Download (1005.81KB)Specific references
- EAN13
- 4045761184190
You might also like
Achromatic objective, 10.0× - OBB-A1108
Achromatic objective, 100.0/1.30 (oil)...
Achromatic objective, 20.0× - OBB-A1110
Achromatic objective, 4.0× - OBB-A1111
Achromatic objective, 40.0/0.70 (spring)...
Achromatic objective, 60.0/0.80 (spring)...
C-Mount camera adapter 0.50x, focus...
C-Mount camera adapter 1.00x (for...
Darkfield unit: Usable for 4x–40x...
Filter grey for OLE-1, OLF-1 - OBB-A1184

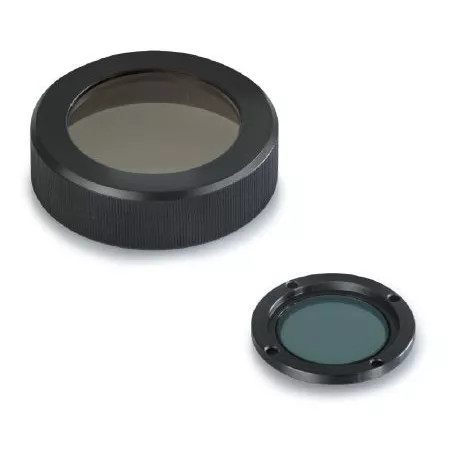

Polarising unit, Analyser/Polariser -...
