Load cell made of stainless steel CR-Q1 | Interbalances

Load cell made of stainless steel CR-Q1

€285.00 Tax excluded

€285.00 - €560.00

Condition

New

Reference

CR 2500-1Q1

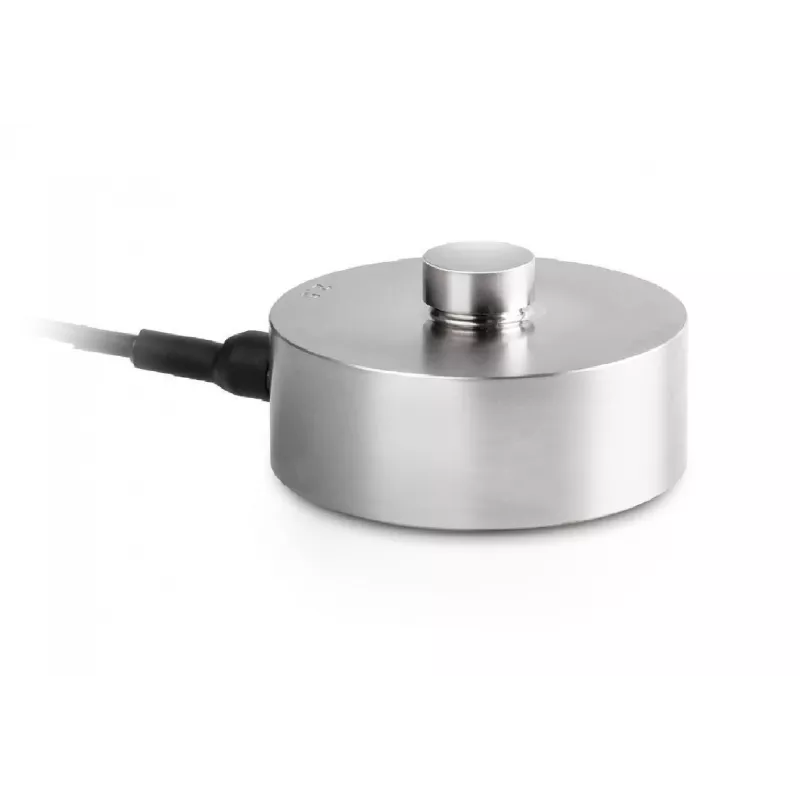

SAUTER CR-Q1 ► Load cells made of stainless steel, protection against dust and water splashes IP68, hermetically encapsulated

Description complète et documents

Click here to view product combination list.

Obtain technical data

IP68Protection MeasuringCompressiveForce SAUTER LoadCell LoadCells IP68 MeasuringMass SAUTERCR-Q1 CR-Q1 CR2500-1Q1 CR5000-1Q1 CR10000-1Q1

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

CR 2500-1Q1

Characteristics

Nominal load (kg):

2,5 t/ 25 kN

Type of protection:

IP68

€285.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CR 5000-1Q1

Characteristics

Nominal load (kg):

5 t/ 50 kN

Type of protection:

IP68

€285.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CR 10000-1Q1

Characteristics

Nominal load (kg):

10 t/ 100 kN

Type of protection:

IP68

€285.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CR 30000-1Q1

Characteristics

Nominal load (kg):

30 t/ 300 kN

Type of protection:

IP68

€560.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

Accuracy class C1
protection against dust and water splashes IP68 (in accordance with EN 60529), hermetically encapsulated
stainless steel
Area of application: Measuring mass as well as compressive force
Suitable for vehicle scales, weigh hoppers, vehicle testing equipment, test benches
Nominal sensitivity: 2 mV/V
