Singlepoint load cell CP-P9 | Interbalances

Singlepoint load cell CP-P9

€380.00 Tax excluded

€380.00 - €580.00

Condition

New

Reference

CP 10-3P9

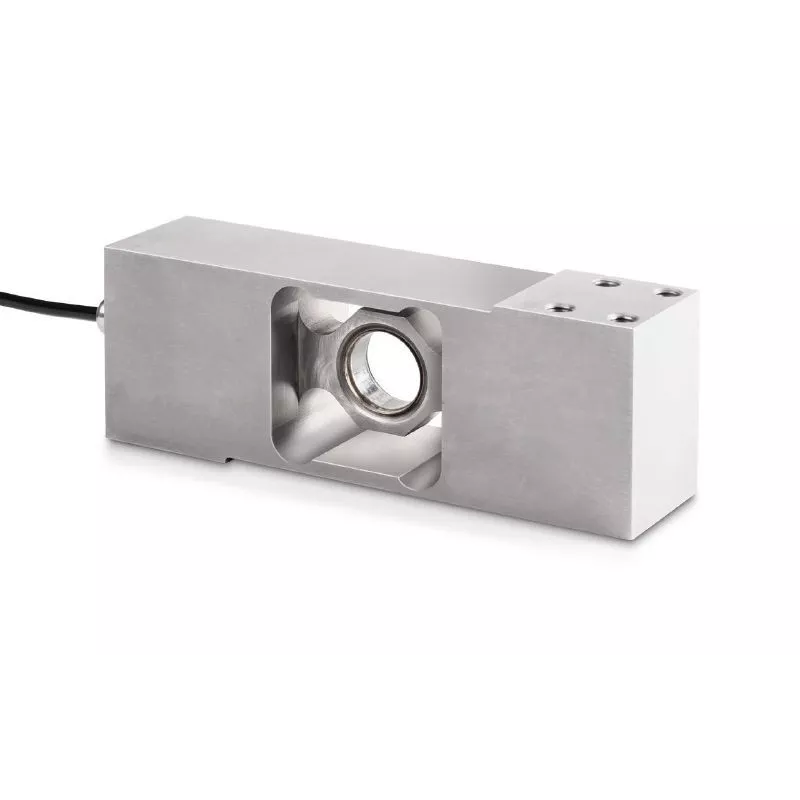

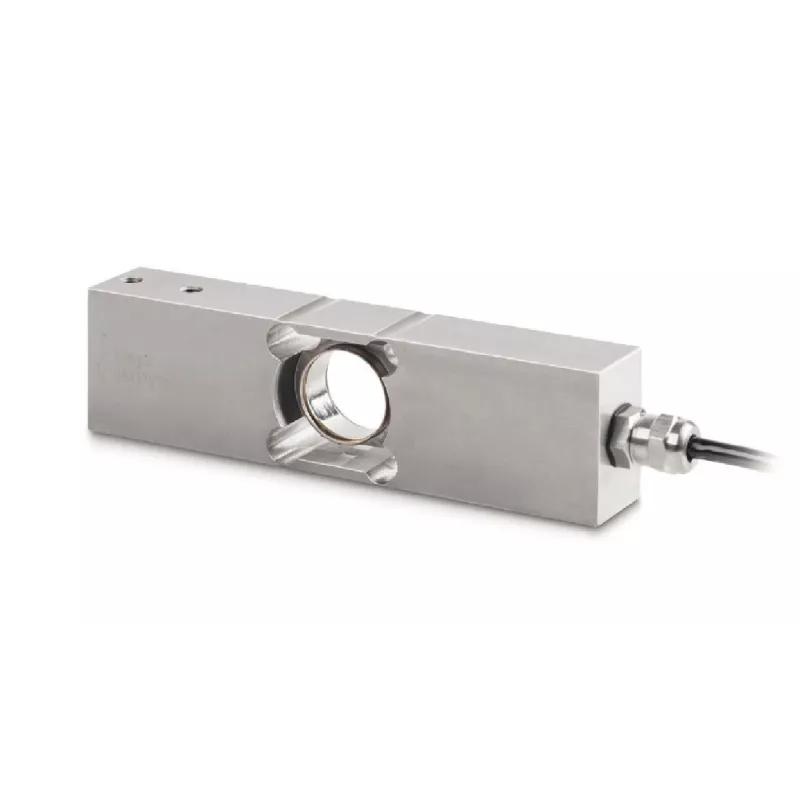

SAUTER CP-P9 ► Single-point load cells made of stainless steel with IP69K protection

Description complète et documents

Click here to view product combination list.

Obtain technical data

IP68Protection SAUTER IP69K IP69 SinglepointLoadCell LoadCell Cell IP69Protection IP68 IP69KProtection Singlepoint SAUTERCP-P9

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

CP 20-3P9

Characteristics

Total dimensions (W×D×H):

150 mm x 40 mm x 25 mm

Nominal load (kg):

20 kg

Type of protection:

IP68/IP69K

€380.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CP 100-3P9

Characteristics

Total dimensions (W×D×H):

174 mm x 45 mm x 64 mm

Nominal load (kg):

100 kg

Type of protection:

IP68/IP69K

€570.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CP 200-3P9

Characteristics

Total dimensions (W×D×H):

174 mm x 45 mm x 64 mm

Nominal load (kg):

200 kg

Type of protection:

IP68/IP69K

€500.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CP 300-3P9

Characteristics

Total dimensions (W×D×H):

174 mm x 45 mm x 64 mm

Nominal load (kg):

300 kg

Type of protection:

IP68/IP69K

€580.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CP 400-3P9

Characteristics

Total dimensions (W×D×H):

174 mm x 45 mm x 64 mm

Nominal load (kg):

400 kg

Type of protection:

IP68/IP69K

€580.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

Accuracy in accordance with OIML R60 C3
Dust and spray protection to IP68/IP69K (in accordance with EN 60529), welded to create a hermetic seal
Stainless steel
Area of application: Measuring mass as well as compressive force in harsh environments
Suitable for Platform scales, Checkweighing
Maximum platform size 10–50: 400×400 kg
Maximum platform size 100–500 kg: 800×800 mm
4-wire connection (10–50 kg
4-wire connection (100-500 kg)
Nominal sensitivity: 2 mV/V
Note: Version in accordance with OIML R60 C4 or C5 on request
