Display device KIB-TM

€220.00 Tax excluded

Condition

New

Reference

KIB-TM

KERN KIB-TM ► Practical Flip/Flop display device for greatest ease of use

Read the full description

Click here to view product combination list.

DisplayDevice Display KIB KERN KCP KCPProtocol Practical Device Use Greatest Ease Flip

Obtain technical data

Model

Characteristics

Certificate / Verification

Price HT

Stock

Shipping time

Model

Characteristics

Certificate / Verification

KIB-TM See specifications

Characteristics

Display digit height:

25 mm

Weighing units:

oz PCS kg tJ HJ g lb

Rechargeable battery:

Accu optional

Total dimensions (W×D×H):

268 mm x 115 mm x 80 mm

Resolution:

60000

Certificate / Verification

Homologation [M] Vignette:

€220.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

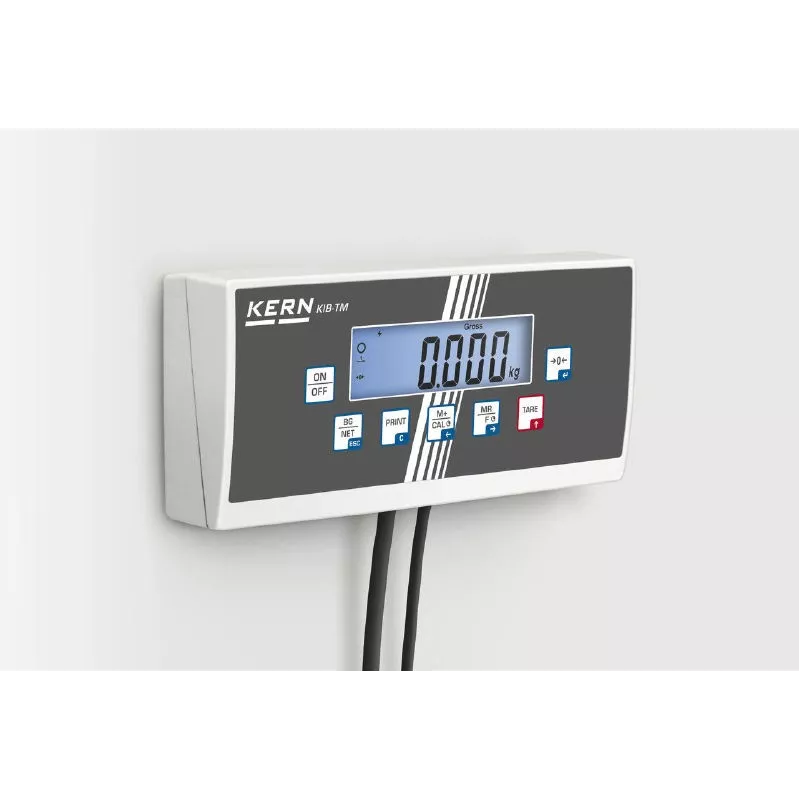

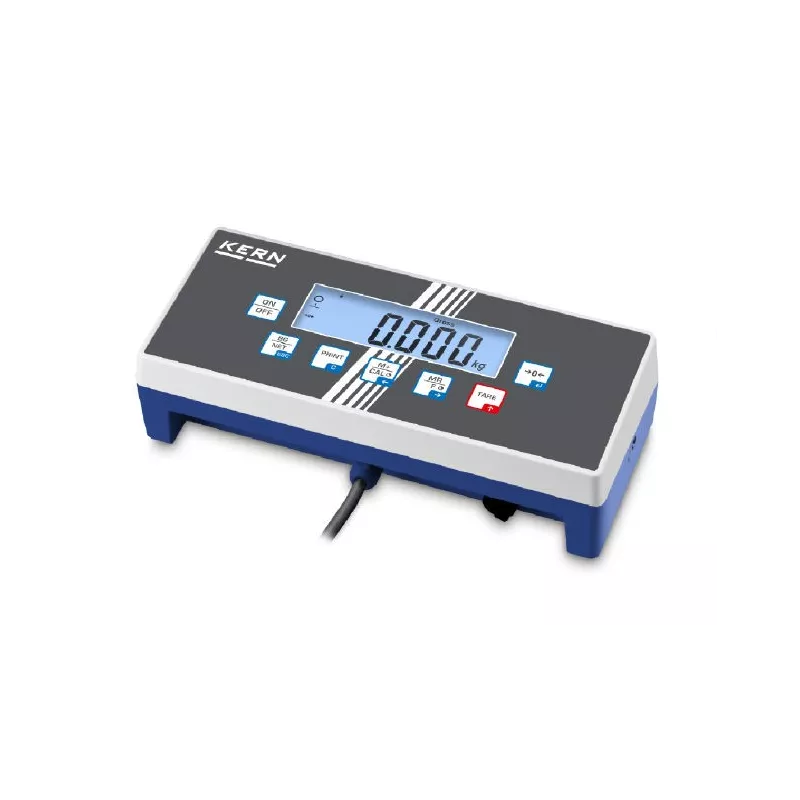

Practical Flip/Flop display device: flexible positioning e.g. free-standing or screwed to the wall (optional). By rotating the upper housing shell you can determine the angle of the display as well as the cable outlet
- (standard configuration ex works: rear outlet), Conversion of the display device, Factory Option, delivery time + 2 working days, KERN KIB-M01, see accessories
Industry 4.0: A wide range of (optional) data interfaces means that it is easy to transfer weighing data to tablets, laptops, PCs, networks, Smartphones, printers, etc.
Searching and remote control of the balance using external control devices or computers with the KERN Communication Protocol (KCP). KCP is a standardised interface command structure for KERN balances and other instruments which allows you to recall and manage all relevant parameters and device functions. You can therefore simply connect KERN devices with KCP to computers, industrial control systems and other digital systems. In a large number of cases the KCP is compatible with the MT-SICS protocol.. Only possible through data interface RS-232, other interfaces on request.
Display (segments): 6 digits
Resolution verifiable: 6000 e
Resolution non verifiable: 60000 d
Weighing units: lb, tJ, HJ, oz, kg, PCS, g
Graduations: 1, 2, 5, 10, n
Reference quantity: 5, 10, 20, 25, 50, 100
Linearisation: 3 points
Input voltage: 12 V DC, 1000mA
Permissible ambient temperature -10 °C/40 °C
Dimensions housing W×D×H 260×115×70 mm
Net weight approx. 0,8 kg
Possibilities for interfaces:
- - RS-232 (standard)
- - LAN or USB-for-USB-stick (export alibi data) or WLAN or Bluetooth or USB-for-PC
- - Traffic light
