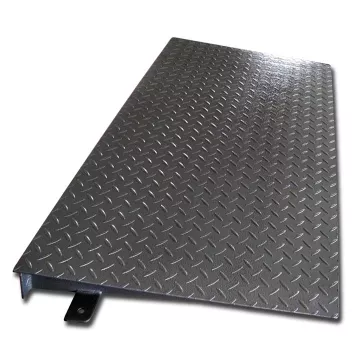

Platform with top diamond pan (1500kg-3000kg) BAXTRAN ZFZ

FEATURES:

• Platform with 4 load cells.
• Installation on ground.
• Steel framework and top diamond pan of 3,5 mm.
• Enamelled in black.
• 4 Nickel-plated steel load cells, IP66.
• Junction box, IP66 protection.
• Adjustable feet in height.
• 4 output metres of cable included.

• ABS indicator, model BR15.
• Backlight LCD display with six 30 mm height digits.
• Backlight of the display with 3 types: automatic, activated and
• IP54 protection.
• Waterproof keyboard with 5 function keys and ON/OFF keys.
• Keyboard functions: Unit selector, zero, tare, accumulation and manual
• data transfer to PC or printer.
• Separate buttons to turn on and off.
• Rechargeable internal battery 6V/4Ah, 120 hour battery life.
• Operating temperature range: -10ºC +40ºC.
• Unique range, multi-range or multi-interval.
• Power supply with adaptor AC/DC 240Vac 50Hz.
• Unit 1 to choose: off, kg,t and g; Unit 2 to choose: off, lb, lboz; Unit 3 to choose: off, Taiwan Jin, CA or VISS.
• RS232 output (PC and print formats).
• Auto switch off (programmable: from 1 to 99 minutes).

FUNCTIONS:

• Accumulation
• Totalization
• Piece counting
• Zero
• Hold 4 modes: deactivate, filter for animals, peak value, stable weight and stable weight with auto cancel in zero
• Control of weight and pieces (limits function) with visual
• signal and alarm.
• Three speeds of AD converter (high, medium and low)
• Programmable gravity
• Gross/Net
• Tare
